> New airpax -2 pole, 30AMP e-frame circuit breaker ( )
New airpax -2 pole, 30AMP e-frame circuit breaker ( )

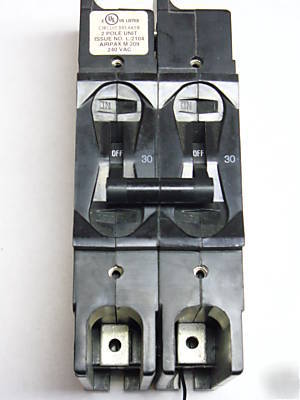

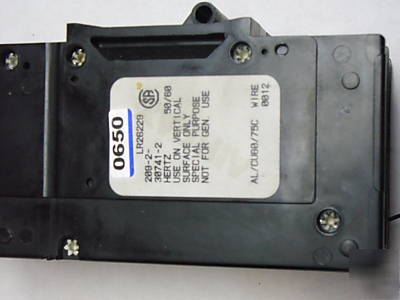

THIS IS A NEW (OUT OF BOX) AIRPAX E-FRAME BREAKER WITH A RELAY TRIP OR VOLTAGE TRIP (DUMP CIRCUIT) (I'M NOT SURE WHICH).
THE TRIP IS A THIN BLACK WIRE COMING OUT OF THE RIGHT HAND LOAD SIDE OF THE BREAKER. THAT POLE HAS A TAG ON IT THAT READS, (TV-120AC) WHICH MAKES ME THINK ITS A 120VAC DUMP CIRCUIT.
* 2 pole E-Frame style complies with UL standard 489
* Front connected terminal style, 10-32 screw terminals.
* 50/60 Hz. Delay Curve: 62F - medium delay, high pulse tolorance construction
* Utilizing the hydraulic-magnetic principle, the 209 family adapts itself to local applications and environments. Temperature conditions, which affect fuses and other thermal devices, are not a concern. The magnetic /ampere turn principle minimizes nuisance tripping due to temperature variations.
* The 209, E-Frame circuit breaker combines power switching with accurate, reliable circuit protection in a compact unit.
* The unit is ideal for branch circuit applications such as EDP, air conditioners, panel boards and lighting controls.
* Inrush currents, due to ferroresonant transformers, lamps and capacitive filters, are now becoming more significant. Recognizing the need for this type of protection, Airpax offers the unique inertial delay which is standard for all 50/60Hz time delay units.
The 209 family of circuit breakers withstands high pulses without tripping or affecting normal delay curves. This performance, however, does not derate or sacrifice protection.
Special purpose for vertical panel mounting only.
VDE approved for commercial applications.
