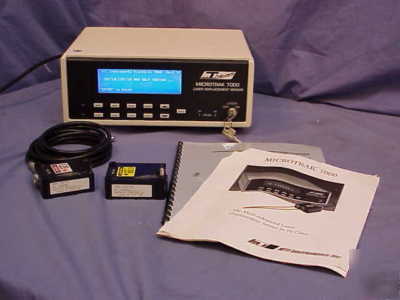

Microtrak 7000 laser displacement sensor + sensor heads
Both sensors tested functional.
The most advanced laser-based triangulation measurement system in its class, the MICROTRAK 7000 provides high
resolution and wide-range frequency response in one, ruggedly built instrument. Whether on the production floor or in the
laboratory, the new MICROTRAK 7000 gives you:
A wide range of innovative features and performance advantages
Simple setup, easy operation and application versatility
The MICROTRAK 7000 is the latest addition to the MTI Instruments line of high-precision, noncontact measurement
systems. The MICROTRAK 7000 offers an effective and affordable solution for quality and process control.
Each MICROTRAK 7000 laser sensing head contains its own microcircuitry. Simply plug it in, and it communicates directly
to the signal processor for automatic setup. Unlike other systems, which require recalibration by the manufacturer when
changing heads, the MICROTRAK 7000 allows the user to change laser heads without recalibration. This versatility makes
the MICROTRAK 7000 a cost-effective solution for laboratory or factory environments.
1 MT 100 1.00 inch standoff
1 MT 250 2.5 inch standoff
Unmatched Resolution is achieved through high-quality optics, latest microchip technology and advanced digital
High Sampling Rate (100 kHz) and 20 kHz frequency response ensure accurate, real-time data, even for high-speed
Fluorescent LCD Alphanumeric Display shows convenient setup parameters and control functions.
Menu-Driven Controller provides easy selection of limit checking, gain, averaging, mode selection, inch/mm and other
Two Laser Heads with a Single Controller simplify thickness and warpage measurements.
Visible Laser Beam allows easy positioning and aligning of sensing heads.
Rear Panel Terminals permit interconnection of remote high/low alarm., zero and hold, etc.
Unique Algorithm prevents crosstalk between laser heads, even with transparent targets.
RS-232c, IEEE-488 and Analog Output available.
Customized OEM Designs for dedicated user applications.
