Leviton OSW12-mow multi-tech w view occupancy sensor

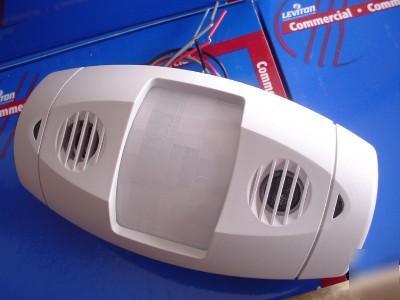

Leviton OSW12-MOW Multi-Tech W View Occupancy Sensor
Leviton OSW12-MOW Multi-Tech Wide View Occupancy Sensor with OSP-20-DO supply
Leviton OSW12-MOW Multi-Tech W View Occupancy Sensor Multi-Tech 1200 Sq. Ft. Wall Mount Occupancy Sensor with power supply
Multi-Technology, 115 Degree, 1200 Sq. Ft.Coverage, Self-Adjusting, Wall Mount Occupancy Sensor, Commercial Grade - White California Title 24 Compliant
The sensor provides a trouble-free "install and forget" solution for lighting control
Sensor Type: Multi-Technology Adjustment: Self-Adjusting Sensor Technology: PIR/Ultrasonic 32kHz Pattern Degrees: 110 Coverage Range Sq. Ft.: 1200 Manual Time Adjustment: 30s-30m, 6s Test Mode Load Rating: Uses Power Pack Input Voltage: 24VDC Current Consumption: 30mA Photo Cell: Ambient Override ON Color: White Standards and Certifications: CUL/US Cert Warranty: 5-Year Limited Housing Material: High-Impact, Injection Moulded Plastic Code Compliance: California Title 24
Features and Benefits: Combines PIR Technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally. Can be used for ceiling or wall mounting Ambient light override prevents lights from turning on when there is ample natural light Self-Adjusting delayed-off time interval settings for 30 seconds to 30 minutes. Compensates for real-time occupancy patterns- preventing unnecessary on/off switching Non-volitile memory preserves all automatic and manual settings during power outages. Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post Excellent 5-Year Limited warranty Typical Applications: Work Areas, Storage Areas, Store Rooms, Office Executive, Classrooms, Conference Rooms, Open Office Area with pendant fixtures, File Rooms, Computer Rooms, Multi-Purpose Areas, Cafeterias, Gymnasiums, Large Partitioned Restrooms and Stairwells Electrical Specifications Input Voltage 24VDC Current Consumption 30mA Output Voltage 24VDC w/Short Circuit Protection Load Rating Uses Power Pack
Multi-Technology, 115 Degree, 1200 Sq. Ft.Coverage, Self-Adjusting, Wall Mount Occupancy Sensor, Commercial Grade - White
