Spectra laser level HV101 horizontal/vertical 14844
Spectra Laser HV201
Recharge Kit, Wall Mount, Glasses & Target

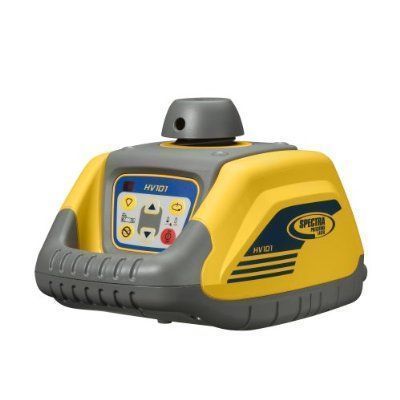

Spectra Laser HV101Hor/Vertical
HR150 Reciever, Wall Mount, RC601 Remote and Case
General purpose Construction Laser for Interior and Exterior Applications
* Beam is easily visible even in brightly lit conditions
* Durable construction can withstand tough jobsite conditions
* Split beam enables plumb point transfer and 90-degree layout
* 3-year instant over the counter exchange warranty eliminates downtime
* Laser Source = <5 mW @ 635nm, Class 3A
* Laser Accuracy = 1/8 in at 100 ft ( 3 mm at 30 m) ( 20 arc seconds)
* Operating Range = 100ft minimum visual, 1,000ft diameter w/receiver
* Self-Leveling Range = 5 degrees
* Compensation Method = Electronic self-leveling
* Power Source = 2 x D alkaline batteries
* Battery Life = 50 hours alkaline (45/25 hrs user provided Ni-MH/Ni-CD)
* Battery Status LED = Flashing red LED
* Rotation Speed Four preset speeds 0,50,200,600 RPM
* Scan Angles = Five preset angles 3 , 8 , 45 , 90 , 180
* Out of level Warning = Rotation stops, laser shuts off, red out of level LED flashes
* Operating Temperature. = 23 F to 113 F (-5 C to 45 C)
* Storage Temperature = -4 F to 158 F (-20 C to 70 C)
* Water Resistant = Yes, and IP54 sealing
* Size = 8.5L 6.7W 6.0H in (21.6L 17.1W 15.2H cm)
* Interior and exterior commercial and residential construction
* Installation of ceilings and raised floors
* Interior finishing work
