Multiplex inc. 980NM high-power pump laser module

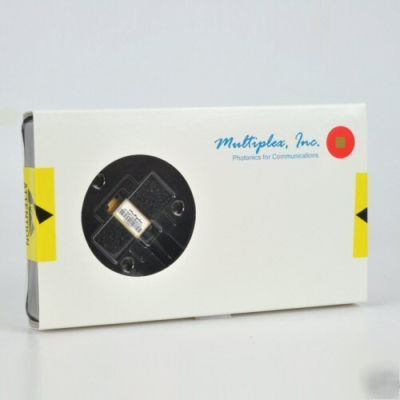

Multiplex Inc. 980nm High-Power Pump Laser Module New Surplus
Model/Part No:MTX9P14G80B2F2 Our Item ID: 5690
Multiplex Inc. 980nm High-Power Pump Laser Model MTX9P14G80B2F2
The MTX9P pump laser module is an InGaAs/GaAIAs multi-quantum-well laser device that emits at 980nm, and is packaged in a 14-pin hermetic butterfly package. The laser module also contains a thermoelectric cooler, a thermistor, and a monitor photodiode. It is optionally available with or without fiber Bragg grating wavelength stabilization.
The device is designed for use as a continuous wave pump source for Erbium-doped Fiber Amplifiers (EDFAs). It is pigtailed with a minimum of one meter of Corning Flexcore 1060 250 mm fiber, which allows for a minimum bending radius of 25 mm.
The MTX9P series uses a proprietary facet passivation process (MX5), which effectively protects the laser facets from catastrophic optical damage (COD) at high operating optical power densities. The lasers are 100% burned in at an industry-best 100C to ensure reliable operation.
Erbium-Doped Optical Amplifiers
Up to 240 mW kink-free fiber output
InGaAs/GaAIAs strain-balanced multi-quantum-well laser chip
Industry-standard, fully floating pinout configuration
Epoxy-free, fully hermetic, laser- welded package
Low profile (7.2 mm high) form factors available
Optical Fiber Bragg Grating wavelength stabilization available
Corning Flexcore 1060 fiber pigtail standard (250 mm diameter, 6 mm core)
Click on additional information for specifications
Item Tested?: Not Applicable (N/A)Physical Condition: Excellent; Working Condition: N/A (Not applicable)2 | 12x 8x4 | 1
