#6108 -11.8" matsumoto cnc 4TH axis rotary table

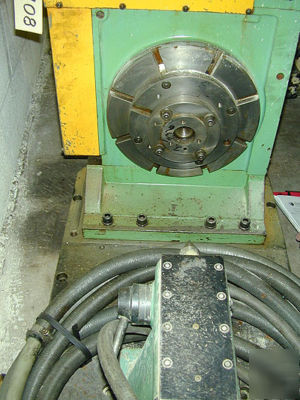

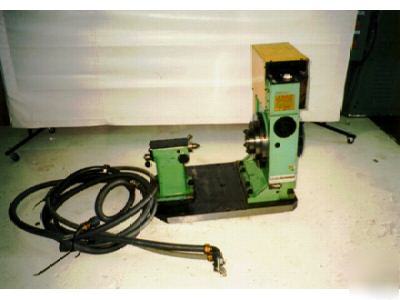

11.81" LOGANSPORT MATSUMOTO MODEL MDIU-300 ROTARY TABLE WITH TAILSTOCK & INDUCTOSYN
Table RPM (gear ratio) 33.3 RPM (1/60)
Maximum machine force 827 ft-lb
Brake clamping force 1704 ft-lb
Increased accuracy (inductosyn scale) 6 Arc. Sec.
Repeatability (inductoysyn scale) +/- Arc. Sec.
Permissible load-vertical 330 lbs.
1 HP Fanuc DC Servo Motor, Type CL,2000 RPM
Inductosyn scale for increased accuracy
*NOTE: CAN BE INTERFACED WITH FANUC CNC CONTROL*
