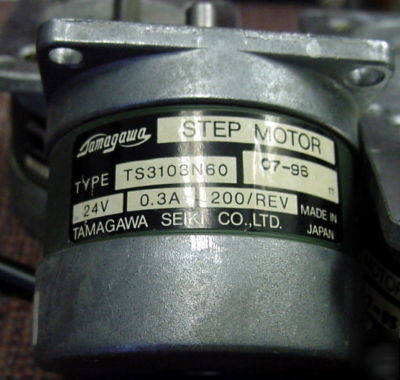

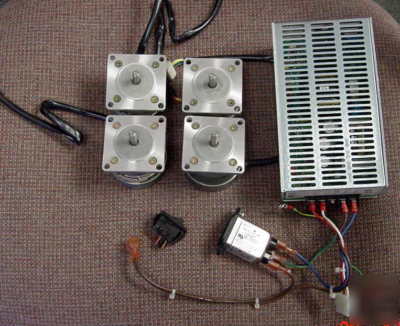

4 each stepper motors & 24VDC ps. tamagawa TS3103N60
The coil color code is the same as the vexta 6 wire series except the Black wire is replaced by a yellow wire and a white wire is used for both coil center taps.
Yellow-Green is first coil with common white to CT
Red-Blue is second coil with common white CT
Seuence for wave patteren is as follows -ground is the 24volt return
Sequence for High torque is-ground is the 24vot return
