18" x 96" warner & swasey/norton pln cyl. grinder 25949

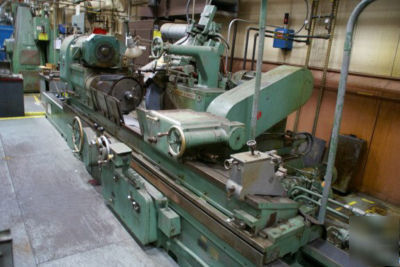

18" x 96" WARNER & SWASEY/NORTON PLAIN
Serial No 29154, New 1975, Model C6
Dust Hog Air Filtration System
Swing Diameter, Maximum.................... 18"
Distance Between Centers, Nominal.......... 96"
Weight Capacity, Maximum................... 5000 LBS
Grinding Wheel Diameter.................... 30"
Grinding Wheel Width....................... 4"
Grinding Wheel Hole Diameter............... 12"
Workhead and Tailstock Center Tapers....... #20 JARNO
Table Longitudinal Speeds, Range........... 0 to 94 IPM
Work Speeds, Range......................... 0 to 54 RPM
Wheel Feeds, Range......................... 0 to 0.003"
Wheel Feed Increments...................... 0.0001"
Grinding Wheelhead Spindle Motor........... 20 HP
Overall Dimensions, L x D.................. 24' x 9'8'
Overall Height............................. 8'
Weight, Approximately...................... 32,500 Lbs.
NOTE: Machine Can Be Inspected In Plant For A Limited
Time. Machine Appears To Be In Excellent Condition
In High Accuracy U.S. Naval Facility.
PRICE: BEFORE REMOVAL..................... $39,500.00
