Wheel dresser sine slide dresser toolmaker/ machinist

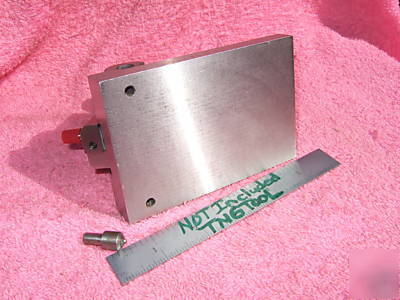

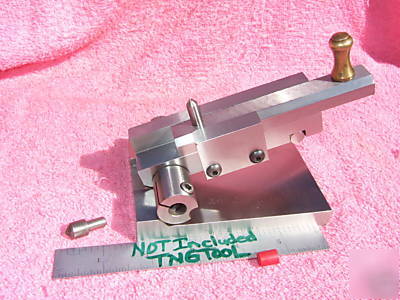

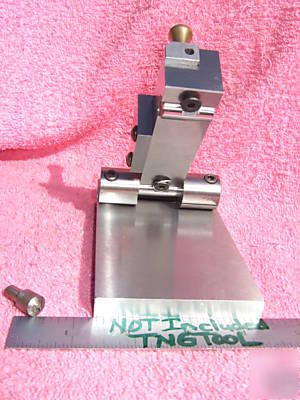

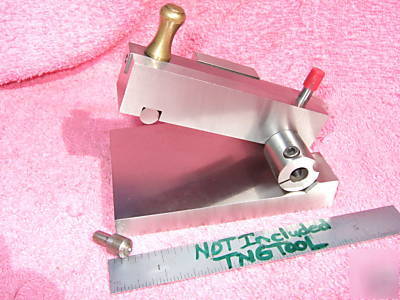

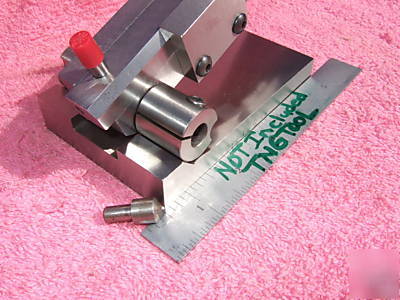

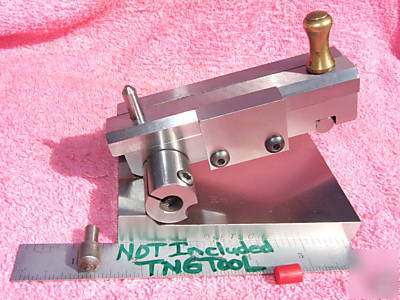

WHEEL DRESSER SINE SLIDE DIAMOND DRESSER ON A 3" CENTER DISTANCE BETWEEN THE ROLLS. TOOLMAKER/ MACHINIST MADE WITH VERY GOOD USED (1) 1/4" SINGLE POINT DIAMOND IN GOOD CONDITION AND A NEW 1/4" DIAMOND INSTALLED. MADE BY AMERICAN TOOLAMKER RECENTLY RETIRED FROM GENERAL ELECTRIC. TOOLMAKER SAID HE RE-GROUND IT JUST PRIOR TO RETIRING AND IT LOOKS IT WOW! LOCKING DEVICE WORKS VERY WELL TO LOCK THE ANGLE. BASE HAS FORMER OWNERS NAME NEATLY STAMPED PRIOR TO HEAT-TREAT AND GRINDING PROCESSES AS SHOWN IN PICS.
THIS IS USED ON SURFACE GRINDERS WITH MAGNETIC CHUCKS TO DRESS BOTTOMS AND SIDES OF GRINDING WHEELS AT A PRECISEANGLE FOR PRECISE GRINDING APPLICATIONS WHEN USED WITH MAGNETIC CHUCK ON CORRECT MACHINE. BASE (1) MEASURES 2.997" WIDE x 4.540" LONG AND IS 1.943" TALL OVER THE SLIDE. SLIDE MOVEMENT IS APPX. 1-1/2" TO 2" APPX OF TRAVEL. BLOCK WAS GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND MAGNETIC SINE CHUCK ON A BALL-WAY SURFACE GRINDER BY AN AMERICAN TOOLMAKER WORKING FOR G.E.
THIS TOOL WILL SAVE WEAR AND TEAR ON YOUR KUHN CLEARVIEW OR J&S RADIUS DRESSERS WHEN A QUICK PRECISE ANGLE IS NEEDED ON YOUR GRINDING WHEEL.
