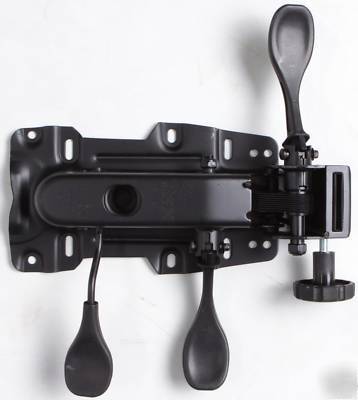

Office chair parts plate mechanism control multi levers
MOUNTING HOLE PATTERN: 6 1/8" x 5.5" (+/-)

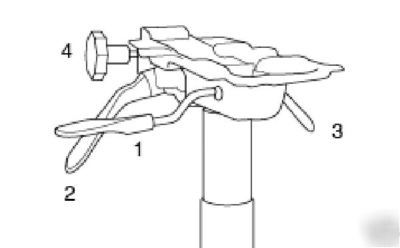

The second photo is line a drawing with numbered features corresponding to the numbered paragraphs below.
1. Seat height adjustment easily raises or lowers seat to desired height. To raise, simply lift weight off seat and pull upward on lever until seat reaches a comfortable height. To lower, lift upward on lever while seated and release to lock seat into desired position.
2. Seat angle w/infinite lock lever allows for precise positioning of seat angle. Simply lift upward on lever until desired seat angle is reached. While the lever is in its uppermost position, adjustments can be freely made and then locked into place by pushing downward.
3. Back angle w/infinite lock lever provides precise, independent back angle control. To adjust, lift upward on lever until desired back angle is achieved. To freely make adjustments without holding onto the lever, move lever into uppermost position, then, when a comfortable back angle is reached, push downward on lever to lock into place.
4. Back height adjustment moves back height up or down for optimum back support. To use, turn counterclockwise until loosened, then adjust back height to desired position and tighten hand wheel once again to lock into place.
