New warner electric tension control tcs-200 new

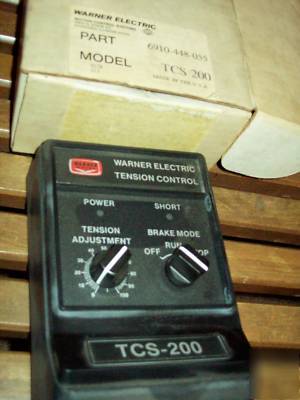

THIS IS A NEW WARNER ELECTRIC MODEL TCS 200,
The Warner Electric Tension Control system is a comprised of the Electro Disc tension brake, a control module and optional external sensor output. The TCS-200 is a current controlled power supply designed to handle up to a 12 magnet Electro Disco tension brake.
Input Power: 24 to 30 VAC, +/- 10%, 50/60 Hz, 1 Phase, 5 amps (150 VA)
Output: Pulse-width-modulated, full-wave rectified; 0 to 270 mA continuous per magnet; up to 12 Electro Disc magnets
