Lot of 10 three position switch switches 6 amp 120V vac

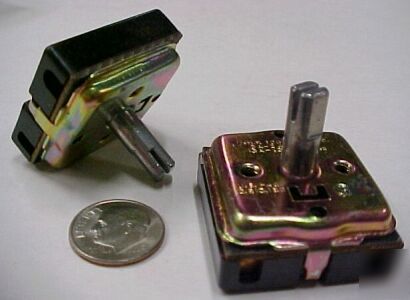

The switches are are push wired, with wire connections named L, 1, 2, and 3. The wire gauge for which they were designed is unknown. Assuming you won't be twirling them around your head, they will easily accept and hold a #14 solid. The wire contacts are a copper-washed brass color, and are nonmagnetic (will not attract a magnet). The rotor contacts are solid copper. The stem shaft is some kind of silver colored nonmagnetic material that is too heavy for aluminum.
Body dimensions: 1.255" X 1.255" (square)
Back of switch to tip of stem: 1.170"
Back of switch to panel mounting surface: .532"
Thickness of flattened tip of stem: .208"
Length of flattened tip: .300"
Thickness of slot at tip of stem: .040"
Mounting screw size & position: #6-32, .710" OC (on centers)
These do not come with knobs, but a knurled toothpaste cap and a dab of epoxy seems to work well. But be sure and put a light coating of petroleum jelly on the switch shaft first, if you ever hope to remove it!
