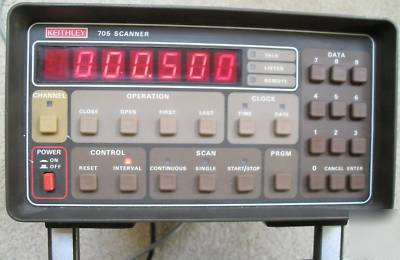

Keithley 705 ieee compatible scanner

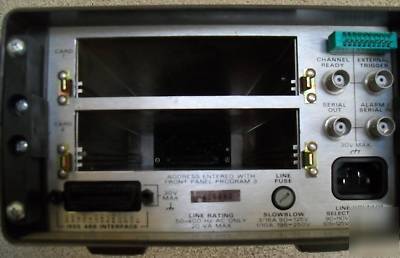

The model 705 is a low cost IEEE compatible scanner. The basic mainframe can accomodate two plug-in scanner cards. Each card can have different pole configurations. In the l-pole configuration the card has 20 channels, The 4-pole configuration allows 10 channels with two cards (for four-wire ohms). Using the "daisy chain" method the model 705, along with four additional model 705 s, can provide up to 100 2-pole channels. The time and the date are kept internally with a battery backed up clock allowing time dependent procedures to be performed.
We have listed separately two cards for this scanner- 7065 Hall effects card and 7066 Relay Switch Card. If you are interested in a complete system we would be willing to negotiate a combined price lower than the sum of the separate items.
