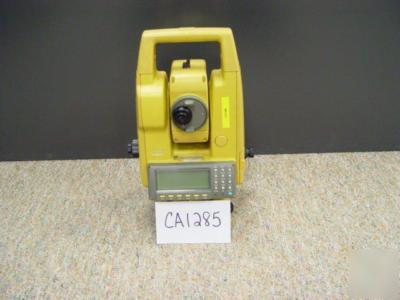

Topcon gts-603 - 3" total station - used
The GTS-600 Series is provided with a measuring distance range of 3,000 meters / 1 prism. As for distance measuring time, dat updates at a rare of 1.3 seconds in teh fine measurement mode. (0.7 seconds coarse mode and 0.4 seconds tracking mode). This shorter distance measurement time will allow you to increas efficiency and productivity in the field.
The GTS-600 Series has the sophisticated design for superior operational ease with a large graphic display, alpha / numeric and Icon menu. Built-in MS-DOS and the graphic dsplay make it possible to adapt to various languages. Also new Ni-MN on-board battery system allows its compact size with high capacity.
The GTS-600 Series has the program memory capasity of 2MB for various larger aplication programs. And also the instrument has an internal memory capacity of 320KB, which makes it possible to store the coordinate data of approx. 5,000 points.
The laser plummet located in the alidade is standard for the GTS-600 Series. With a clearly visible spot on the ground, you can set up the instrument fast and easy. As an option in place of teh laser plummet the GTS-600 Series can have the conventional optical 3X plummet. *CA1285*
GTS-601| GTS-602 | GTS-603 | GTS-605
Condition 1: Slight haze with visibility about 12.5 miles (20km) moderate sunlight with light heat shimmer.
Conditioin2: No haze with visibility about 25 miles (40km), overcast with no heat shimmer
0.005ft. (1mm)/0.001ft. (0.2mm)
11 Digits: max. display 9999999.9999
1mm: 1.3 sec. (Initial 4 sec.)
0.2mm: 3.1 sec. (Initial 6 sec.)
(The initial time will be different by a condition.)
Graphics LCD 40 characters x 10 lines with Backlight
Optical Plummet Telescope (option):
13.5 (H) x 9.1 (W) x 7.0 (L) in.
(343 (H) x 230 (W) x 178 (L) mm)
-4 F to + 122 F (-20 C to + 50 C)
Battery BT-5Q:(2 Batteries Supplied)
Maximum Operating Time at +68 F (+20 C)
Including Distance Measurment:
AC120V(BC-27BR) AC230V(BC-27CR)
Recharging Time (at +68 F / +20 C):
+50 F to 104 F (+10 C to +40 C)
