Pva 2000 inline conformal coating system 2 head machine

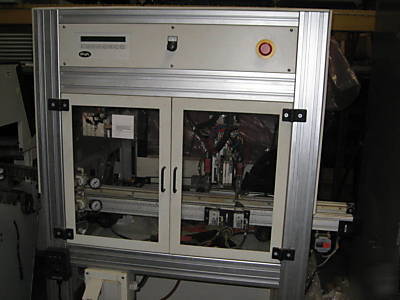

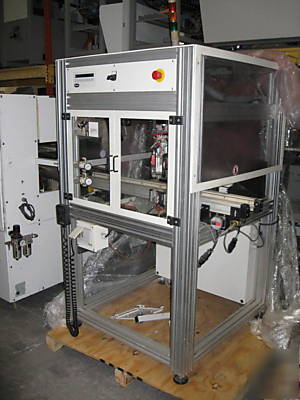

PVA 2000 Conformal coating system

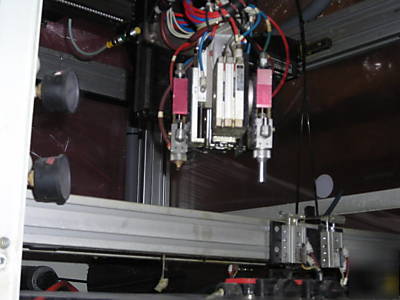

Machine is configured with dual spray heads, 4th axis with tilt on the fine spray head.
currently configured with FCS100 - The FCS100 features an interchangeable spray cap offering the flexibility of oval or fan-shaped spray patterns in widths ranging from 0.25" to over two inches.
and FC100 tilt valve for dispense spraying in tight areas and around components.

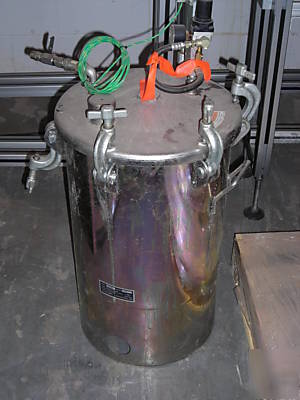

includes graco material tanks - system is in good overall condition.
The PVA2000 introduces a clean, efficient process for applying conformal coatings while virtually eliminating labor-intensive masking operations.
Utilizing a controlled atomized spray and a non-atomized flow coating process, the PVA2000 limits conformal coatings to a defined, preprogrammed coverage area. Film builds as low as 0.01 mm (0.0005") can be achieved across the desired surface.
http://www.pva.net/PDF%20Files/PVA2000.pdf
0 to 700 mm/sec (0 to 27.6 in/sec)
500 mm x 500 mm x 100 mm (19.68 in x 19.68 in x 3.94 in)
Programmable up to 80 ft/min (24.4 m/min)
Adjustable between 940 mm and 965 mm (37 in and 38 in)
Programmable right to left or left to right
SMEMA standard 0.185 in (5 mm)
