Murata thermistor - 100 kohm @ 25 c - ntc - low s/h
* Murata Thermistor - 100 kohm @ 25 C - NTC - Low S/H
* Manufactured by Murata
* NTC - Negative Temperature Coefficient (temperature up = resistance down)
* 100.000 kohm at 25 degrees C
* Operating temperature: - 40 to 125 degrees C
* Resistance varies from 4256.7 kohm @ - 40 degrees C to 2.520 kohm @ 125 degrees C
* Nominal B constant 4250 K +/- 1%
* Resistance tolerance +/- 1%
* Maximum operating current: .14mA
* Rated electric power: 21 mW
* Fast response due to small size
* Dimensions: 3.3 mm W x 2.5 mm D x 4 mm H
* Overall length including leads: 25 mm
Applications * Rechargeable batteries
* Battery charging circuits
* Home appliance equipment
* For complete specifications, please click this LINK (PDF - 515 KB)

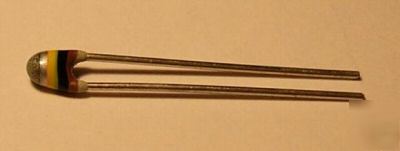

For closer detail of the thermistor, please click on the pictures below.
