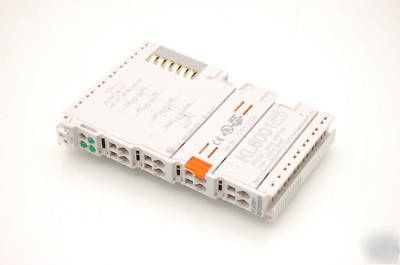

Beckhoff KL6001 Serial Interface RS232 Bus Terminal
KL6001, KL6031 | Serial interface RS232
The KL6001 and KL6031 serial interfaces allow devices with an RS232 interface to be connected. The interface operates in conformity with the CCITT V.28/DIN66259-1 standards. The device connected to the terminal communicates with the automation device via the Bus Coupler. The active communication channel operates independently of the higher-level bus system in full duplex mode at up to 19,200baud (KL6001) or 115.2kbaud (KL6031). The RS232 interface guarantees high immunity to interference through electrically isolated signals.
2 (1/1), TxD and RxD, full duplex
9,600 baud, 8 data bits, no parity and one stop bit are preset (max. 19,200baud)
500Vrms (K-bus/signal voltage)
128bytes receive buffer, 16bytes transmit buffer
Bit width in the process image
Input/output: 3 x 8bit user data, 1 x 8bit control/status (up to 5 x 8bit user data are possible)
No address setting, configuration via Bus Coupler or controller
For all KSxxxx Bus Terminals
Fore more information, please visit Beckhoff's Website: Special Function: KL6001.
