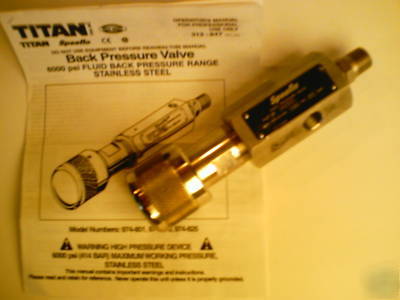

Titan speeflo back pressure regulator ss 1/2" 974-810
This listing is for ONE STAINLESS STEEL BACK PRESSURE REGULATOR. It 1/2" and go to 6000psi. It is used in recirculating systems for heated systems. A back pressure regulator opens at the set pressure. Lets say your pump is set to 5000psi (static pressure) once you press the trigger, the pressure drops to 4400psi (dynamic pressure). You would set the back pressure regulator to 4600 or 4700 psi, so when you let go of the trigger and the pressure spikes, the valve opens and the recirculating circuit opens, putting material back into the drum or inlet valve. When you press the trigger, the pressure drops and closing the valve, shutting off the recirculation allowing full flow to the gun. 1/2" valves that go this this pressure are very hard to find and would be perfect for thick material going through kings or xtreme pumps or plural component systems.
This is your chance to get it for way less than the list price of about $400 each.
