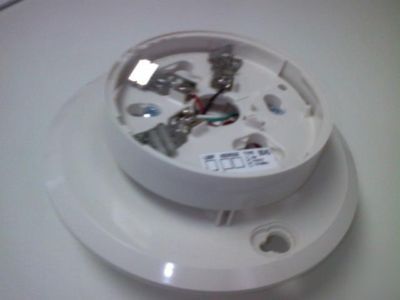

System sensor B501BHT-2 sounder base
Base Diameter: 6.0 inches (15.2 cm)
Base Height (less sensor): 2.3 inches (5.9 cm)
Operating Temperature Range: 32 to 120 F (0 to 49 C)
Operating Humidity Range: 10% to 93% Relative Humidity
External Supply Voltage: 17 to 32 VDC
Standby Current: 1.0 mA maximum
Maximum Ripple Voltage: 10% of supply voltage
Communication/Initiating Loop Supply
Current Draw from Remote Output
of Sensor to turn on Horn: 600 A maximum
Sound Output: Greater than 90 dBA measured in anechoic room at 10 feet, 24 volts. 85 dBA
minimum measured in UL reverberant room.
Sounder Delay Time: 0.75 to 5.7 sec
