Square d 2500 kva 12470/480 delta padmount transformer

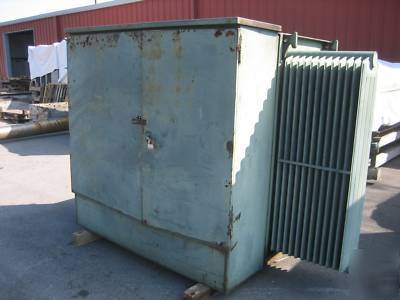

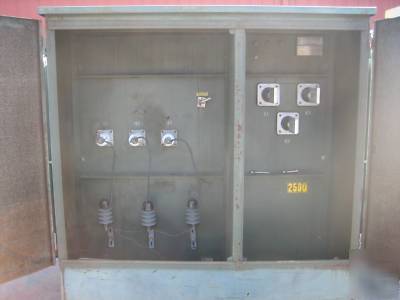

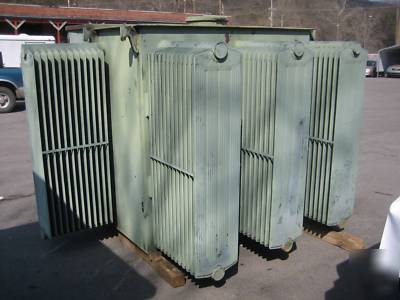

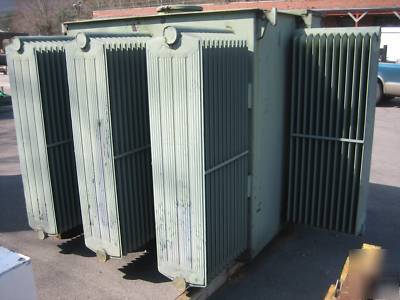

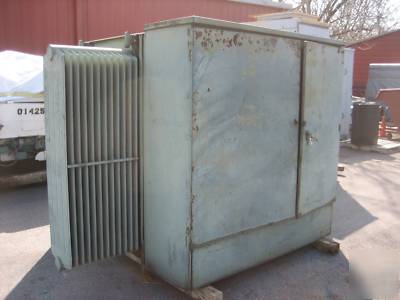

This 3 Phase Industrial Padmount Transformer is in Good condition both Externally and Internally. There are no dings/bends in the casing/cores. Transformer was tested and is PCB free. Transformer has Copper Windings. This transformer comes with a Junction Box as well (pictures shown).

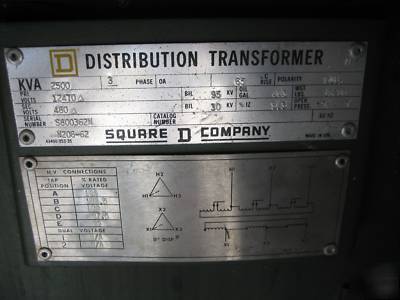

Square D Distribution Transformer
kVA: 2500 3 Phase Class: OA 65 Degree C Rise Polarity: Sub.
Primary Volts: 12470 Delta Bil: 95 kV Oil Gal.: 443 Weight: 13200 Lbs.
Secondary Volts: 480 Delta Bil: 30 % IZ: 5.3 Oper. Press.: +/- 7
Serial Number: S800362N Catalog number: N/A 60 Hz
122" (Width) x 84" (Depth) x 80" (Height)
