New ditch witch 1030 walk behind trencher

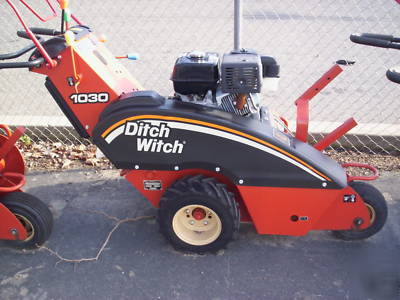

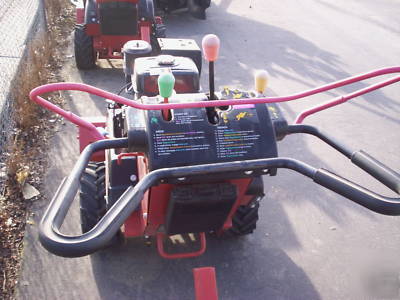

Brand New Ditch Witch trencher, Model 1030. Will arrive to you with a new 30" depth boom and 4" X 30" digging chain installed on the machine.
Trench width, min. to max: 4.3-6 in
Centerline trench to outside edge machine, left: 15 in
Centerline trench to outside edge machine, right: 17 in
Spoil discharge reach: 10.60 in
Ditch Witch model 1030, self-propelled, pedestrian, manually steered,
two-wheel drive rigid frame, chain type trencher.
Trench cleaner type: mechanical
Operating weight (with 33,00-lb (14969-kg) test,
two-pitch digging chain and 24-in roller boom): 900 lb
Ground drive- hydrostatic, infinitely variable from zero to maximum,
gear box to axle, speed and direction controlled with single lever.
Pump drive clutch - mechanical, hand-operated, spring-loaded,
self-latching with tension roller for belt drive.
Digging chain clutch - mechanical, hand-operated,
spring-loaded with tension roller for belt drive
Drive, standard: 16x6.50-8; 28 psi
Drive, optional: 18x8.50-8 22 psi
Trencher Drive: mechanical, belt drive to reduction drive, headshaft
Mechanical - Belt drive to enclosed reduction drive, headshaft
Belt - two-groove "Power Band"
Digging Chain - 33,000 lb (15,000 kg) test or 35,000 lb (15,875 kg) test
Chain drive sprocket - Forged and tempered
Type: 4 stroke: overhead valve
Displacement: 20.60 cubic inches
Maximum governed speed (no load): 3400 rpm
Flywheel power @ 3200 rpm (full load): 10.20 hp
Fuel consumption at 3600 rpm: .80 gph
Maximum tilt angle - all directions: 20
