Opto 22 IDC5D standard digital dc input module

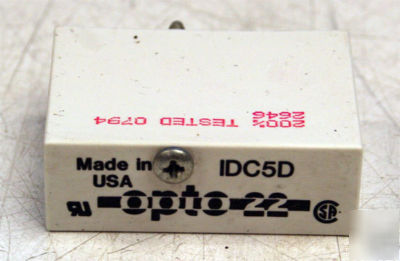

Opto 22 IDC5D Standard Digital DC Input Module
DC Input, 2.5-28 VDC, 5 VDC Logic
The IDC5D is a DC input module accepting 2.5-28 VDC. All input modules are used for sensing ON/OFF voltage levels. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit.
The IDC5D is a low cost, DC-only input module for use in data acquisition applications.
* Operating Ambient Temperature: -30 Celsius to 70 Celsius
* Isolation, Input-to-Output (Transient): 4000 V
* Output Voltage Drop - logic side: 0.4 volts @ 50 mA
* Output Leakage with No Input: 0.01 mA @ 30 VDC
* Transistor: 30 volts breakdown
