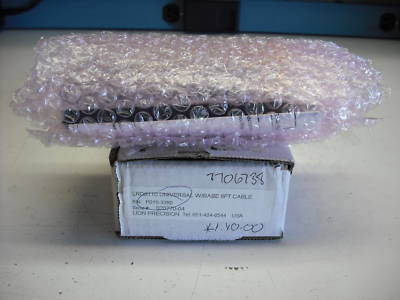

New red lion precision controls LRD6110 open box
Red Lion Controls LRD6110 Great Deal!!
The LION PRECISION LRD6110 LABEL REGISTRATION AND DETECTION SYSTEM is an electronic
capacitive sensor used to monitor label registration and/or count labels. The sensor will output a
signal indicating the leading or trailing edge of the label as it passes through the sensor.
Sensor body is connected to Ground.
Unused wires must be insulated from contact with other objects.
All power must be off when installing the sensor.
Brown wire (Output Polarity) must be connected to +V or Ground for reliable operation.
Warning: Brown wire must be connected to +V
or Ground for reliable operation.
Voltage 11-28 VDC (reverse polarity protected)
Output Current (sinking or sourcing) 150mA max (overload protected)
Switching output PNP or NPN, dark or light switching
Temperature Operating Range 40 F to 140 F (4 C to 60 C)
Supply Inverse Polarity Protection
Switching output Short Circuit and Overload Protection
1. Web must remain in contact with the mounting plate.
2. Label must pass under the [-SENSOR-] indicator.
3. Small labels should be centered under the [-SENSOR-] indicator.
4. When properly setup, the lights will move between WEB and LABEL. The lights in the X
region should only light briefly during the transition between WEB and LABEL regions.
1. Turn Span at least four turns counter-clockwise, then two
turns clockwise (this is the mid-point of the adjustment
2. Place web (liner) only in sensor
3. Adjust Shift until LED #2 is on, then adjust Shift just to the
4. Slowly move a label gap through the sensor and verify that
the indicator lights LED#1 as the gap passes through the
sensor. If it does not, adjust Shift as necessary until it does.
If the setup does not give reliable results (usually for labels less
than 1"), turn Span four turns clockwise (maximum gain) and
repeat steps 2-5. It is important that the indicator only cross the
X region during transition from web to label.
See the LRD6110 setup video at
1) The LRD6110 may not work reliably with solid foil
labels. Some inks, usually black, have a high carbon
content. If the label is flood coated (100% coverage)
with the ink it may behave like a solid foil label.
2) For solid foil labels, use the UltraLRD V2
