New ismatec bvp-z gear pump drive standard * *

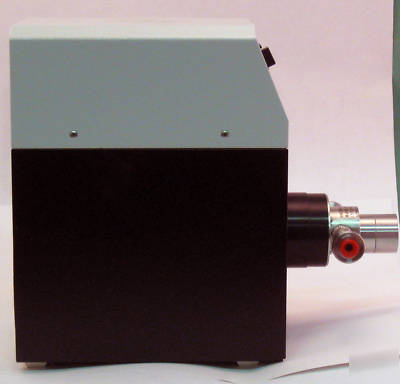

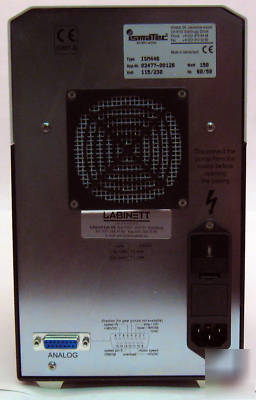

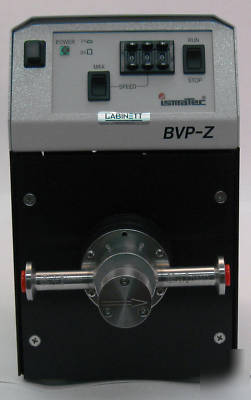

Ismatec BVP-Z Gear Pump Drive Standard
Powerful delivery pump, new in box, with digital potentiometer for speed setting. Normally retails for over $1000!
* Variable speed delivery pump.
* 20 interchangeable pump-heads.
1 7020 ml/min (depending on mounted pump-head)
60 6000 rpm, adjustable in 0.1% steps
Closed loop control for pressure independent speed
Speed control (0 5 or 0 10V / 0-20 or 4 20mA)
Speed monitoring (0 10VDC or 0 12 kHz)
max. 5.2 bar / 75.4 psi (depending on pump-head)
220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10 ") (without pump-head)
5.7 kg (13 lb) (without pump-head)
The rotation direction of Ismatec gear pumps is not reversible
