Keithley 2400 source meter with manuals
For sale is a Keithley 2400 source meter. This unit is in excellent condition.

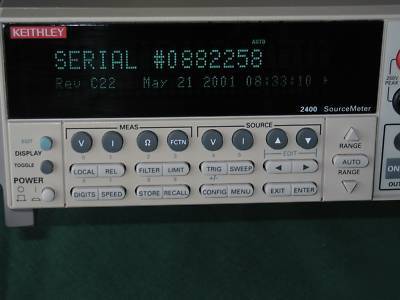

The unit is serial number 0882258 with firmware revision C22 .

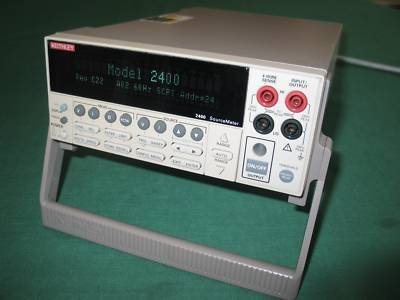

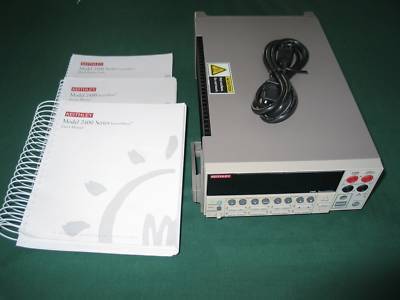

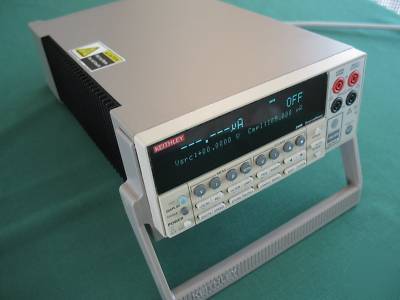

* Keithley 2400 source meter

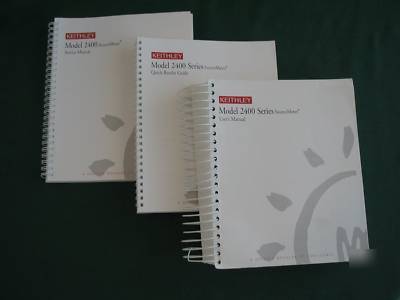

* manuals including - Quick Start Guide, User Manual and Service Manual.
Information from the Keithley site...
Keithley's SourceMeter family is designed specifically for test applications that demand tightly coupled sourcing and measurement. All SourceMeter models provide precision voltage and current sourcing as well as measurement capabilities. Each SourceMeter instrument is both a highly stable DC power source and a true instrument-grade 5-1/2 digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single-channel, DC parametric tester. In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for the communications, semiconductor, computer, automotive, and medical industries will find the SourceMeter instruments invaluable for a wide range of characterization and production test applications.
Five instruments in one (IV Source, IVR Measure)
Six models: 20 - 100W DC, 1000W pulsed, 1100V to 1 V, 10A to 10pA
Source and sink (4-quadrant) operation
0.012% basic measure accuracy with 5 -digit resolution
2-, 4-, and 6-wire remote V-source and measure sensing
1700 readings/second at 4 digits via GPIB
Pass/Fail comparator for fast sorting/binning
Available high speed sense lead contact check function
Programmable DIO port for automation/handler/prober control

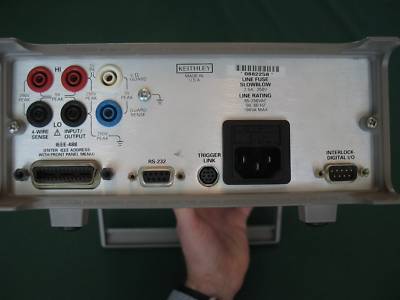

Standard SCPI GPIB, RS-232, and Keithley Trigger Link interfaces
Keithley LabTracer 2.0 I-V curve tracing application software (download)
For more information please visit the Keithley site...
http:// /products/dcac/currentvoltage/gpmp/?mn=2400
