.0002" camera cnc cmm xyz machining vision reverse eng.

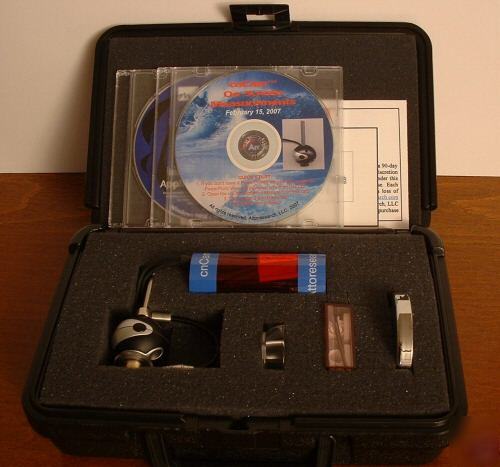

cnCam-e (-e stands for an enhanced resolution), is capable of reaching resolutions up to 0.0002" per pixel, i.e., 5 times better than the original 0.001" cnCam.
Also, cnCam-e more than doubles the distance between the lens and your workpiece.

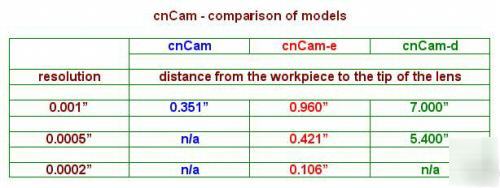

You can purchase an upgrade to cnCam-d to increase the distance up to 20 times at resolutions up to 0.0005", see our store for details about the upgrade.

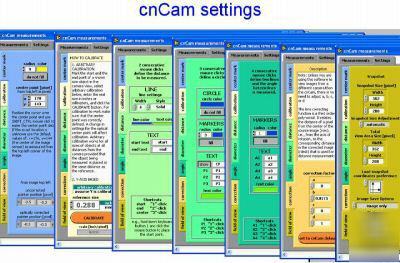

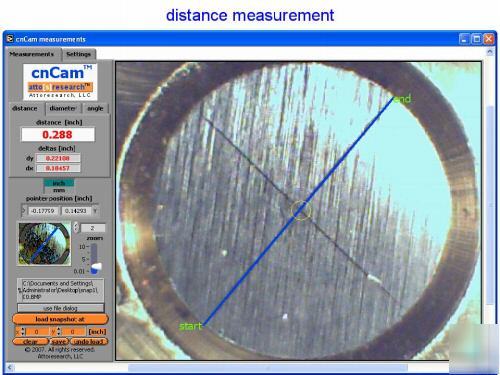

cnCam-e comes with a powerful on-screen measurement software that is capable of performing measurements over 1Gpixel field of view.
It translates to 32"x32" at 0.001" resolution. Visit our store for more details about the software.

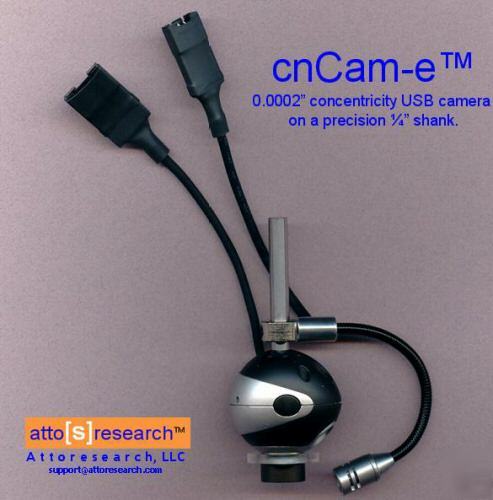

cnCam-e combines a state-of-the-art, high-performance USB camera with a high precision, highly concentric mechanical design that allows you to:
1. Align the axis of rotation of your machine with a reference point on your workpiece to within +/-0.0001", guaranteed. U.S. Patent pending.

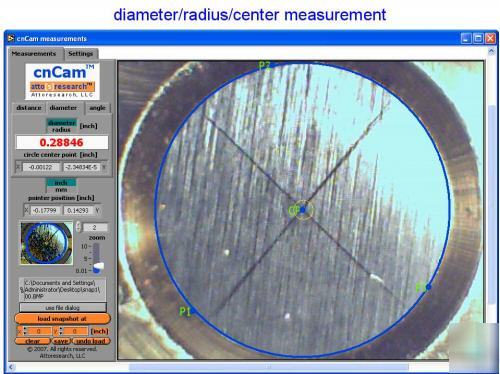

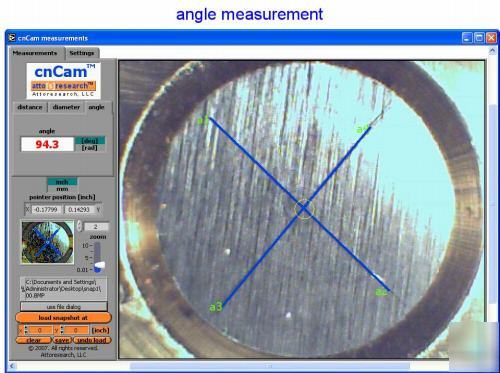

2. Observe and make calibrated on-screen measurements under high magnification (up to x205 on a 19" screen) and with high resolution (up to 0.0002").
10. Observe your cnc mill's performance up close from a safe place in front of your PC .

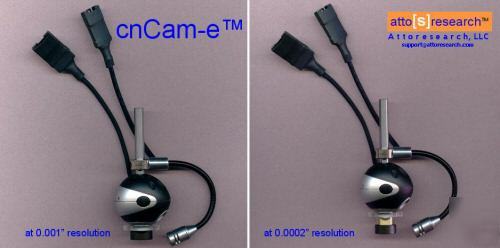

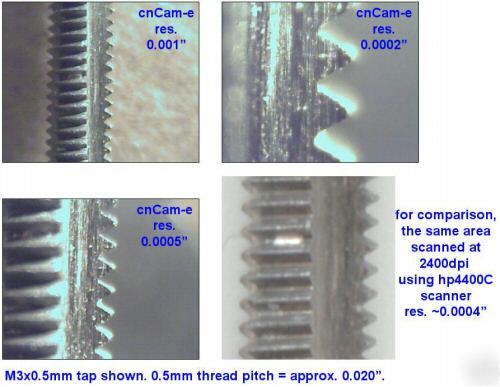

All glass, narrow angle, aspherical lens guaranties a sharp and distortion free image. Adjustable focus lets you choose a resolution that is appropriate for the job - from 0.0002", through 0.0005", to 0.001" - and up to infinity if a larger field of view is needed.
Quality inspection, measurement, and diagnostic tool with industrial, laboratory, medical, jewelry, and many other applications.
Overall camera concentricity better than 0.0002
Focus from 0.1 or less to infinity.

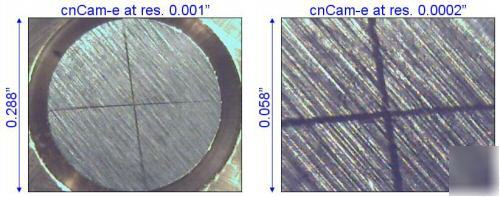

Camera field of view starts from 0.057 diameter (translates to 0.0002 per pixel on screen). The incoming video can be resized to use the full PC screen resolution (typically 1024 x 768 or 1280 x 1024) making it easy and comfortable to operate the equipment at the 0.0002 resolution level.

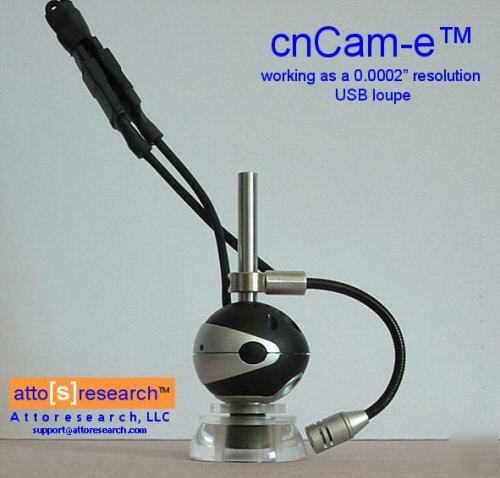

Loupe holder - use your camera as a microscope (magnification x205 with a 19" monitor).
