Rfid mifare ISO14443A reader / usb keyboard interface
13.56Mhz MiFare RFID Reader with USB keyboard Interface
Read UID , No driver and program for operation
Special Function : Dip switch to set difference output format
* support : Mifare ISO14443A (ultralight , S50 & S70)
* Built-in transceiver antenna
* read range : ~5-8 cm (for ISO card size)
* output interface : USB keyboard emulation
* power by USB interface and no external power is needed;
* plug and play , No driver is needed under Windows platform
* output format : Set by DIP Switch as follow
track 1 (10 digits) Add start string % & end string ?
track 2 (10 digits) Add start string ; & end string ?
track 3 (10 digits) Add start string + & end string ?
Connect the RFID reader to PC USB port with the USB cable.
The PC will detect the RFID reader automatically and install it as a HID device .
After installation successfully, open Excel or other application program to read the RFID Tag and the ID will be shown on the screen .
Change the Dip switch to select difference data output format for your requirement.
%0016404729? magnetic card track 1 data format
;0016404729? magnetic card track 2 data format
+0016404729? magnetic card track 3 data format
* Mifare ISO14443A (ultra light, S50 & S70)
Part No : MF1-R-USB-KB-D1 datasheet downloan here

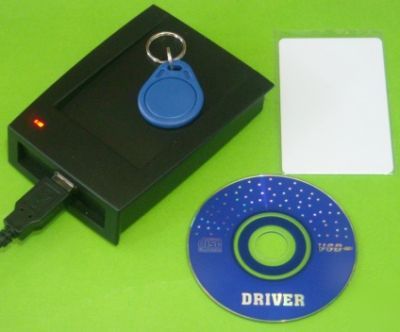

* Mifare RFID reader with USB keyboard interface x 1
* Mifare S50 ISO card x 1 pc
* user guide & datasheet CD x 1
