Panavise 333 assembly circuit board holder electronic

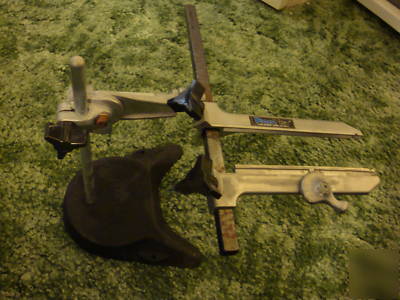

PANAVISE Model: 333 Rapid Assembly Circuit Board Holder
For quick circuit board rotation and component insertion/soldering, nothing beats this work holding tool for speed and versatility.
Features eight rotating adjustment positions at the head, six positive lock positions in the vertical plane, and variable height adjustment
Hold circuit boards up to 12" (304.8mm) wide and up to 0.156" (4mm) thick
Arms move independently and feature "V" shaped grooves
Notches positioned laterally near the arms tips securely and conveniently
5.0 lb Weighted Base is extremely stable
Height (base to top of vertical shaft): 10" (254mm), Weight: 6.4 lbs. (2.9kg)
