New fluke 117 electricians true rms multimeter * *

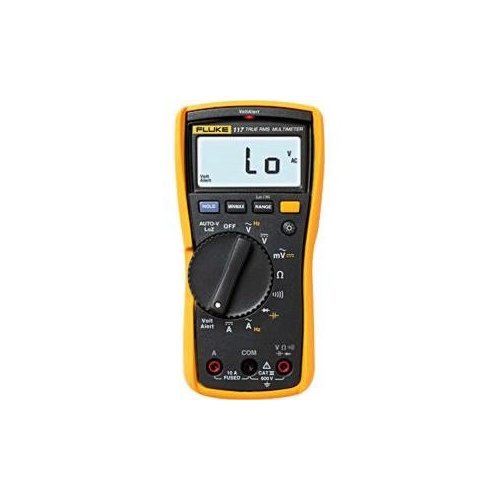

Fluke 117 Electricians True RMS Multimeter
Compact true-rms meter for commercial applications. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster. Fluke 117 True RMS Digital Multimeter Features: True RMS .5% accuracy 28% larger digits 6000 counts Bargraph Backlit Min-max recording Display hold Ergonomic, compact shape Voltage Resistance VoltAlert Non-contact voltage detection Detect AC voltage without carrying a second tool Works down to 24VAC in bare wire applications AutoV Automatic volts detection Automatically determines AC or DC voltage eliminating guesswork Correctly displays voltage measurement without extra steps LoZ Low impedance Reduces chance of false readings due to ghost voltage Safer troubleshooting Specifications Maximum voltage between any terminal and earth ground: 600 V Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293) Display Digital: 6,000 counts, updates 4 per second Bar graph: 33 segments, updates 32 per second Operating Temperature: -10 C to + 50 C Storage Temperature: -40 C to + 60 C Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 Battery Life: 400 hours typical, without backlight Accuracy Specifications DC millivolts Range: 600.0 mV Resolution: 0.1 mV Accuracy: ([% of reading] + [counts]): 0.5% + 2 DC volts R
* Ideal for commercial applications that require demanding settings
* Features true-rms for accurate measurements on non-linear loads
* Highly visible LED screen with white backlight
* Ergonomically designed compact size provides easy one-handed operation
* Includes holster, user manual, and 3-year warranty
* SKU: 5e1103d3c44ccda677b8dfc99f2c371f
