New buss dura-lag dln-r-300 fuse class RK5 250V

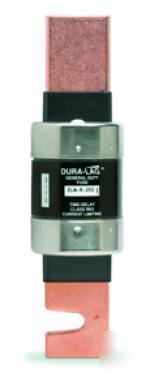

This is for 1 NEW Bussmann Dura-Lag brand general duty time delayed Class RK5 fuse.
DLN-R (250V) Class RK5SpecificationsDecription:Dual-element, time-delay - 10 seconds (minimum) at 500% rated current. (8 seconds for 0-30A sizes)Construction:Fiberglass tube.Ratings:Volts- 250Vac (or less)
- 125Vdc (1 - 60A, 110 - 200A)
Agency Information:CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified,
Class 1422-02 File 53787.Features and Benefits: Separate overload and short-circuit elements provide time delay for close inductive load sizing, linked with RK5 current limitation.
200,000A interrupting rating provides high ratings at all
circuit locations.Typical Applications: Power Panelboards
