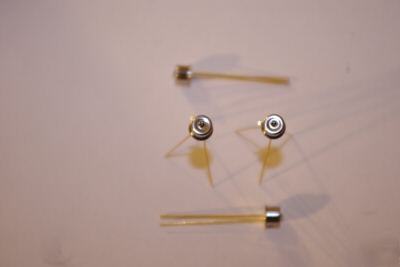

Jdsu etx 75TL ingaas pin photodetectors w/ lensed cap
ETX 75 TL (00750050-000) have photosensitive areas 75um with lensed cap.
The JDSU ETX 75 series large area InGaAs PIN photodetectors have photosensitive areas with diameters of 75 m, respectively. These photodiodes offer high responsivity in the 800 to 1700 nm spectrum and are designed for use in instrumentation, sensing, and range-finding applications.
The detectors feature high sensitivity and linear spectral responsivity over a broad range of input powers. When operating in photovoltaic mode, a noise current density of 10 fA/Hz1/2 is typical at room temperature. When reverse-biased for greater bandwidth, a noise floor of 60fA/Hz1/2 at -5 V is typical. Linear spectral response results from the low series resistance of the photodiodes.
* High responsivity in near infrared spectrum
* Low dark current for high accuracy
* Linear over wide range of input optical power
* Optical attenuation test sets
* Near infrared spectroscopy
http://products.jdsu.com/assets/public/pdf/30137359_001_101705_etx500_ds_cc_ae.pdf
All sales come with 30-day warranty unless advertised differently. Any question please contact: ****@acronymeo.com.
