Hp agilent 54510A 1GSA 2CH digital oscilloscope 2PROBES
HP Agilent 54510A 1gsa 2CH Digital Oscilloscope 2Probes
The 54510A Digitizing Oscilloscope is a general purpose repetitive and real time oscilloscope, fully programmable and transportable. The 54510A has two input channels and an external trigger input. This oscilloscope also features full HP-IB programmability, powerful triggering, easy waveform storage, automatic measurements, and instant hardcopy output.
* 300MHz Repetitive Bandwidth, 250 MHz Real time(one shot) Bandwidth
* Single-shot and repetitive signal performance
* Automatic pulse parameter measurements
* Automatic measurements (23 built in)
* 1mV/div to 5V/div sensitivity
* Time base range: 1ns/div to 5s/div
* 8k Memory Depth per Channel
* Two Channel Input and Display
Link to full data sheet is HERE

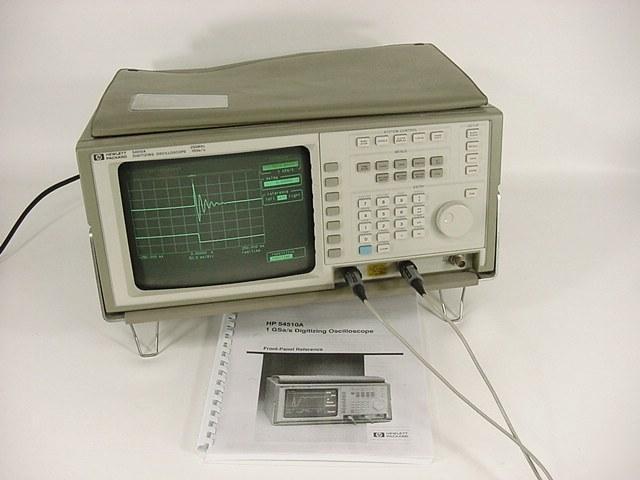

I think the photos demonstrate that this HP scope is in very good cosmetic condition. There are no old inventory labels, adhesive residue, names carved into the case, or damage. I have verified the scope is in good working condition. You can see it passes all of the self tests in the photos. The display is bright, clear and well focused and there are no noticeable burns on the display. You can see it displaying a step function and the result of an LC circuit in the photos.
* Two 350 MHz LeCroy scope probes with gound wire and "grabber"
This is a great digital scope that was optimized for capturing one shot events. I especially like the LARGE easy to see display. Also there are two cal output signals on the rear panel so you can check the entire input from connector to display. A very nice feature.
