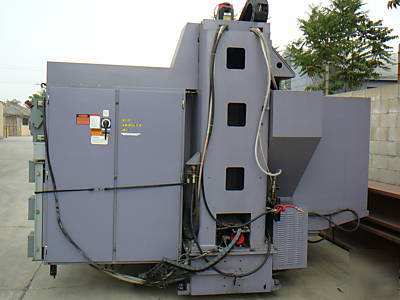

Cin. cintimatic ev-1250, model a, cnc vert mach centre
* Axis travel - Longitudinal (X) = 49.2", Cross (Y) = 25.6", Vertical (Z) = 25.6"
* Spindle Range gauge line to working surface - Max. 31.5"/Min. 6"
* Spindle Dia. 6", Length 4"

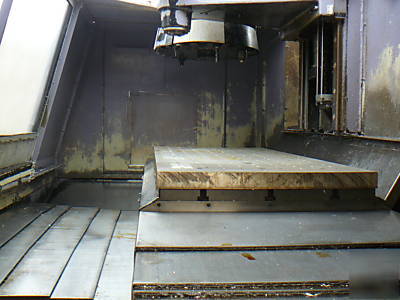

* Table, X-Axis Work Surface Dimensions 26" x 54"
* Load Capacity - 1,500 Pounds
* Spindle Speed Range (Standard) 60-8,000 RPM (70-10,000 RPM Optional)
* Number of Speeds 1 RPM Increments, Infinitely Variable
* Tool Holder - #40 ANSI-ASME B5.50 1985 Flange, OR #40 ISO Tools, OR #40DIN Tools, OR #40 BT Tools
* Linear Axis Feedrates and Thrust
* Feedrates, X-Y and Z Axes, 0.1-600 Ins/Min
* Rapid Traverse Rate, X-Y and Z Axes 639 ipm
* Z-Axis Thrust at Spindle (Duty Rated) 1,700 LbSF
* X-Axis Thrust (Duty Rated) 700 LbSF
* Y-Axis Thrust (Duty Rated) 600 LbSF
* Unidirectional Positioning per Linear Axis + 0.0004 inches over full travel
* Unidirectional Repeatability per Linear Axis + 0.0001 inches over full travel
* Storage Capacity 21 Tools
* Tool Selection Method Random by Prfogrammed Tool, Station Number or Tool ID
* Max. Tool and Holder Weight 15 Lbs., Tool Ring Load 150 Lbs., Tool Length 12 Inches, Tool Dia. (all stations full) 3 Inches, Tool Dia. (adjacent stations empty) 6 Inches, Automatic Tool Change Time (metal to metal) 10 Seconds

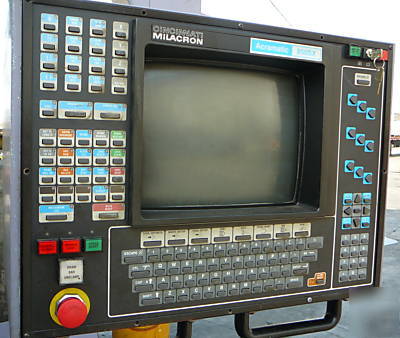

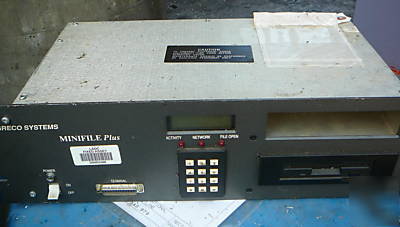

* Model and Type - ACRAMATIC 850SX

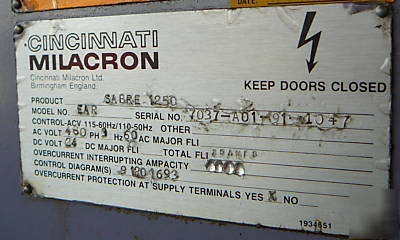

* Mfg. Cincinnati Milacron
* Machine Dimensions - 140" x 140" x 130" high, 17,500 Pounds

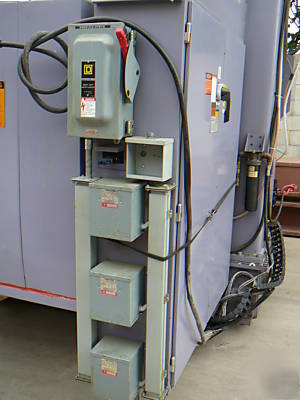

* Electrical Requirement - 9 kw AC Spindle Drive Motor (15 KVA), Axis Drives X-Y-Z 6 KVA, Max. Power (Theoretical) Consumption 22.5 KVA, Full Load Current on 230V Supply 36 Amps
