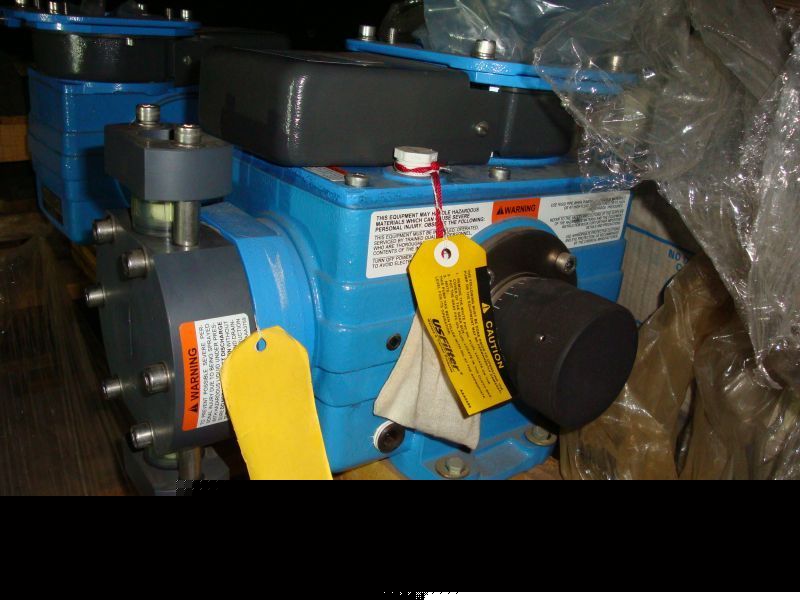

New wallace and tiernan 3" encore 700 metering pump
NEW DEALER PARTS PRESENTS BRAND NEW US FILTER - WALLACE AND TIERNAN CHEMICAL/FLUID METERING PUMPS
3" DIAPHRAGMINCLUDES OPTIONAL 4:1 PULLEY REDUCTION SYSTEM
TAGGED AS : TESTED PRIOR TO DELIVERYFOR A VARIETY OF CHEMICAL FLUID METERING
for robustness. Welcome to the Encore 700 advantage.
Handles capacities up to 634 gph (2,400 I/h), back pressures to 175 psi (12 bar).
Liquid end size 1 and 2: 0.188" (4.8mm)
Liquid end size 3, 4, 5 and 61/2: .0375" (9.6mm)
Reapeatable metering accuracy is +/-2% of full scale, at constant hydraulic conditions, over 10:1 operating range.
The pump will self prime with a 10ft. of water suction lift (wetted valves, zero back pressure, full stroke and spreed, waterlike solutions). Once primed, the pump will operate with a 10ft. of water suction lift. Flooded suction is recommended.
-MUNICIPAL/INDUSTRIAL WATER TREATMENT:
Coagulants, oxidizing agents, disinfectants, corrosion inhibitors, chemicals for taste, odor and pH control
Acids, caustics, disinfectants and oxidizing agents
Bactericides, algaecides, acids, caustics, detergents, corrosion inhibitors and lubricants
Additives for petrochemical, pharmaceutical, pulp and paper, plastics and textile manufacture
Filtration and fermentation aids, bactericides, acids, caustics and detergents
Fertilizers, herbicides, pesticides and food supplements
Hydraulic diaphragm pumps are renowned for their durability, but start-up and maintenance can be laborious, particularly when service requires purging and replacing intermediate fluids. Additionally, many designs are very sensitive to changing suction conditions. If undiagnosed, blocked or starved suction can lead to hydraulic overfill and subsequent diaphragm failure.
Mechanical diaphragm pumps are far less sophisticated. Start-up and service are typically much smoother since there are no messy intermediate fluids, internal relief valves or hydraulic refill circuits to tamper with. But, until now, mechanical diaphragm pumps haven't shared the hydraulic diaphragm pump's reputation for robustness. Welcome to the Encore 700 advantage.
