New megger dlro - digital low resistance meter 247002 * *

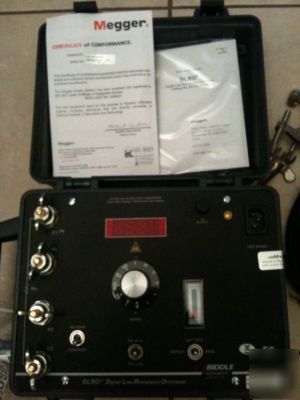

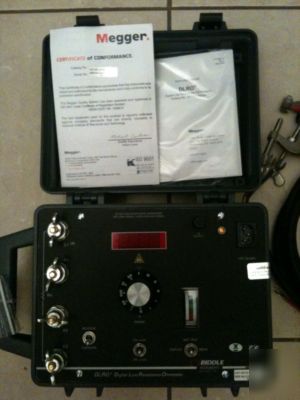

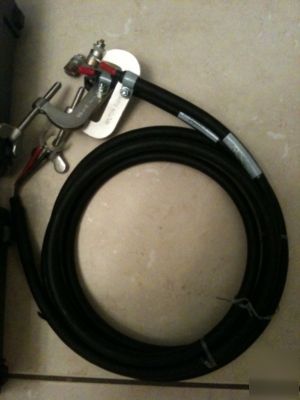

**Brand NEW Megger DLRO 247002 comes with C Clamp Lead Set 242004-7 and operating Manual - Never been Used. **Two small scratches on the bottom part of the case - Works Awesome.
Digital Low Resistance Ohmmeters
Digital Low Resistance Ohmmeters (DLRO ) are a family of highly accurate instruments that provide a simple, practical and reliable means of making low-resistance tests in the field. They also are ideal for production quality control.
They operate on the four-wire measurement principle, thus eliminating lead and contact resistances. With basic accuracies of 0.25% and resolution down to 0.1 , they are nonetheless designed to be rugged and portable for use at the job site. A variety of optional test leads and calibration resistance standards are offered for use with DLROs.
Operation is simple: just connect the leads, turn the instrument on and read the measurement directly from the digital LED display. No warm-up is required.
Typical applications include measuring the resistance of: Switch and circuit breaker contacts Transformers and generators Motor windings
Busbar and other joints Aircraft, rail and pipe bonds Cable splices, welds and fuses Metal alloys Graphite electrodes and other composites Wire and cable
Two models specially designed for general-purpose testing applications are available.
Each provides up to 10 amperes of test current for measuring resistances to 60 ohms with 1 resolution and 0.25% accuracy.
This model provides an extra range, 0 to 599.9 , for applications requiring 0.1 resolution. It also features a current-reversing switch to average out any voltage offset in the test sample. Captive wing nuts are also standard.
Resolution to 0.1 on 599.9 range Standard accuracy of 0.25% Digital readout

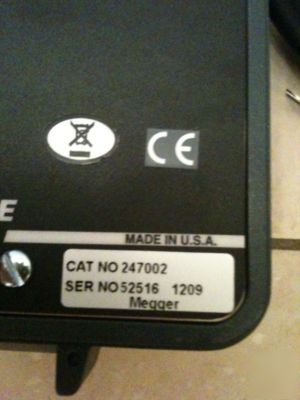

Digital Low Resistance OhmmetersThe Low-Range DLRO, Cat. No. 247002, features an extra range and rugged, Single-Pak design.
Resolution as fine as 0.1
Kelvin-type, four-wire measurement eliminates errors caused by lead and contact resistances.
Digital readout with automatic zero circuit eliminates field test inaccuracies.
Broad line of test leads is available to simplify and enhance data collection.
0-5.999m 0-59.99m 0-599.9m 0-5.999 0-59.99
Rechargeable batteries with separate charger
8Hx9Wx8D in. (20 x 23 x 20 cm)
0-5999 0-59.99m 0-599.9m 0-5.999 0-59.99
Rechargeable batteries with internal charger
12Hx6Wx10D in. (30 x 16 x 25 cm)
0-599.9 0-5.999m 0-59.99m 0-599.9m 0-5.999 0-59.99
Higher Ranges Measuring Modules 247000-3
0-5.999m * 0-59.99m 0-599.9m 0-5.999 0-59.99
Rechargeable batteries with separate charger or internal charger
Dual -Pak units 8Hx9Wx8D in. (20 x 23 x 20 cm)
Single-Pak 12Hx6Wx10D in. (30 x 16 x 25 cm)
