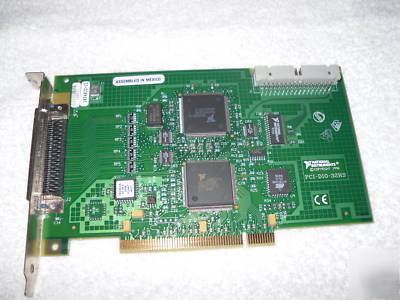

National instruments ni pci-6533 pci-dio-32HS board
The National Instruments PCI-6533 (DIO-32HS) is a high-speed, 32-bit, parallel digital I/O interface for PCI. The NI PCI-6533 incorporates the NI DAQ-DIO ASIC, a 32-bit general-purpose digital I/O interface specifically designed to deliver high performance on plug-in digital I/O boards. This device performs single-point I/O, pattern I/O, and high-speed data transfer using a wide range of handshaking protocols at speeds up to 76 MB/s. You can operate the 32 lines as individually configurable single-line I/O, or as 8, 16, or 32-bit ports for pattern I/O and handshaking.
* 8, 16, or 32-bit transfers
* 2 MHz maximum clock rates for pattern I/O
* NI-DAQ driver compatible with LabVIEW, CVI, C, and Measurement Studio for Visual Basic and VB.NET
* 13.3 MB/s (pattern I/O) and 76 MB/s (handshaking) maximum throughput
* Start and stop triggering with pattern matching and change detection
* National Instruments PCI-6533 PCI-DIO-32HS Board
