Hitachi v-655 60 mhz dual channel oscilloscope

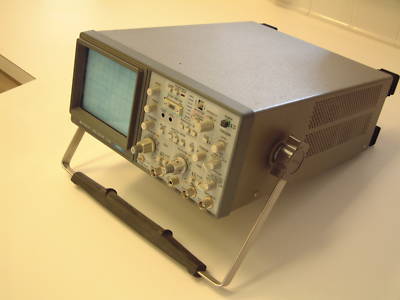

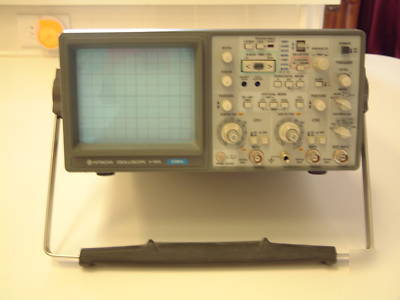

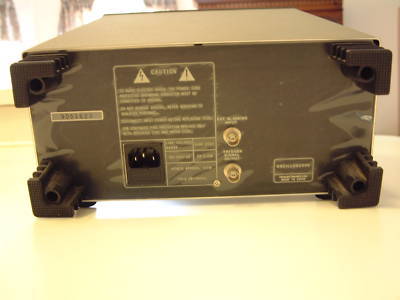

HITACHI MODEL V-655 60 MHZ ANALOG OSCILLOSCOPE
This is a two channel, two trace oscilloscope with a bandwidth from 0 - 60 MHz. Traces are sharp and bright with no burned spots anywhere. Display is 8 cm x 10 cm in size.
Vertical sensitivity: from 5 v/div to 2 mv/div
Horizontal sweep rates: from 0.5 s/div to 50 ns/div (with an additional 10x magnification to 5 ns/div). Scope has an auto sweep mode in which it selects the best timebase for displaying your waveform. You can also manually select the sweep rate you want.
Cursors can measure on screen: Delta Time, Delta Voltage, and 1/Delta time
Scope will display: ch1, ch2 , alt, chopped, add, X-Y modes
Horizontal modes include: A sweep, B delayed sweep, A + B
Trigger modes: Auto, Normal, TV-V, TV-H
The B delayed mode can be used with a different timebase than the main A sweep - allowing closer examination of a section of the main sweep.
Comes with a 10x scope probe and the Operator's manual .
Unit in excellent condition, tested, guaranteed fully working.
