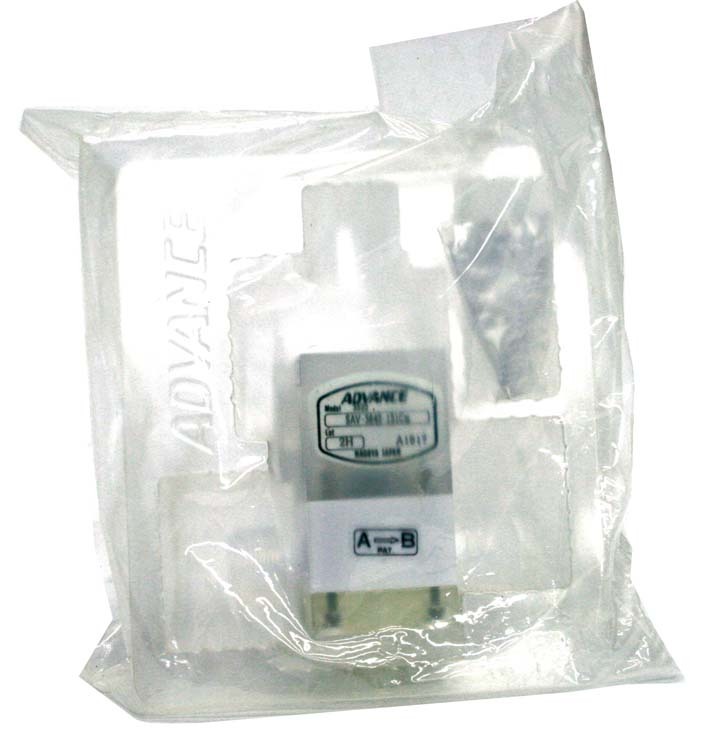

Advance compact pneumatic chemical valve sav-3640/3522
Advance Compact Pneumatic Chemical Valve SAV-3640/3522
Diagonal Layout each air ports for greater space and easier plumbing.
Simple flow path makes big capacity and dead space reduction
Fitting integration type are standardized to prevent dead space and leakage from female screws.
Highly precision machining from PTFE mono block, the purest and highest resistance material.
Diaphragm cushion (no wet parts) for greater attention to head cycle. Double seal with strong structure against leakage.
Highly precision machining from PTFE mono block to realize downsizing
Small pressurized area make it possible to reduce actuator force and contribute down sizing.
Outstanding configuration fro repeated flexibility.
A full line up ranging from the two to five manifolds for even greater space saving
