1.5" w 12" strk hansford-davis 15 keyseater
1.5" W 12" Strk Hansford-Davis 15 KEYSEATER
1.5" Width 12" Stroke Hansford-Davis 15 KEYSEATER

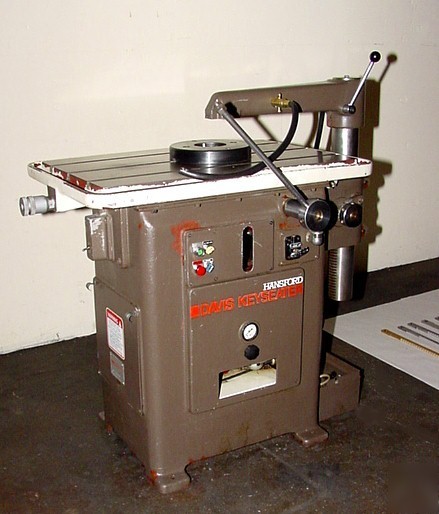

1-1/2" HANSFORD/DAVIS MECHANICAL KEYSEATER
MODEL 15B, S/N: 15-1166, NEW 1990
CUTS KEYWAYS IN STEEL .............. 1/16" TO 1-1/2" WIDE
STROKES PER MINUTE VARIABLE ........ 16 - 60 SPM
TABLE SIZE ......................... 20" X 31"
NUMBER OF T-SLOTS IN TABLE ......... 3
TABLE MOVEMENT ..................... 1-1/2"
CUTTER TO ARM POST ........... 19"
MAX INCL TAPER PER FOOT CAN BE CUT . 3"
MAX WORK HEIGHT, STANDARD .......... 12"
MAX LENTH OF CUT WITH 3/4" HIGH BUSHING HOLDER
-16" LONG CUTTER .............. 4"
-20" LONG CUTTER .............. 8"
-24" LONG CUTTER .............. 12"
APPROXIMATE WEIGHT ................. 1,250 LBS.
- MODEL: 15B PROVIDES THE SELECTION OF MANUAL OR AUTOMATIC
FEED & INCLUDES AUTOMATIC STOP.
- ADJUSTABLE DOUBLE RESISTANCE ARM CLAMPS
- 2 HORSE POWER VARIABLE DRIVE MOTOR WITH PUSH BUTTON
ELECTRICAL CONTROLS MODEL:DA-27
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
