42" rotary table off of a cnc machine

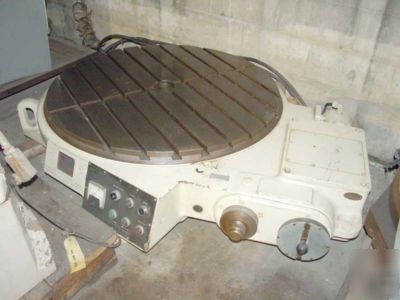

42" PRATT & WHITNEY NUMERICALLY CONTROLLED ROTARY TABLE
Stock# K10372 TABLE DESCRIPTION: The 42" Pratt & Whitney Numerically Controlled Horizontal Rotary Table
is Designed to Provide Fully Automatic Indexing by Means of Data Fed
into the Table From Your Existing CNC Control. The Table Positions are
Recognized by the P&W Electrolimit Measuring System. Up to 120 Separate
Index Points can be Set by Means of Easily set Dogs. The Table can also
be Positioned Manually by using the Large Vernier Setting Knob. The

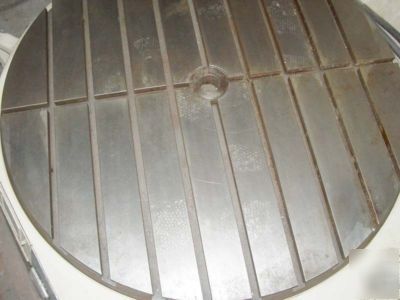

working Surface is Precision Hand Scraped with 9 Parallel T-Slots. CATALOGUE SPECIFICATIONS: Working Surface Diameter............................. 42"
Maximum Recommended Weight Cap....................... 5000 lbs
Table Height......................................... 9"
Center Hole in Table................................. #13 B&S
Number of Parallel T-Slots........................... 9
T-Slots Center to Center............................. 4"
Size of T-Bolts...................................... 5/8"
Table Graduations.................................... Degrees
Table Dial Graduations Read to....................... 1 Minute
Table Dial Vernier Graduations....................... 2 Seconds
Motor................................................ 3/4 HP
Electrical System.................................... 220/440/3/60
Approximate Dimensions............................... 49" x 44"
Approximate Height................................... 9"
Approximate Weight................................... 2,500 LBS CONDITION: This came from Pratt & Whitney Aerospace and was used on a Big P&W CNC Jig Bore. The Tables is in really nice shape. I think if you would add a Servo Motor you could make it into a nice full CNC unit.
