Nib agilent hp om er 719 013/104/300/310/350/601 37719A

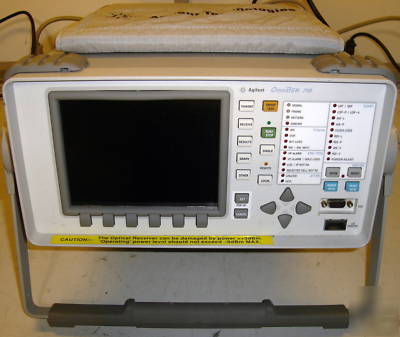

AGILENT OMNIBER 719 OPT. 013/104/300/310/350/601 37719A
Unit came out from a working environment. Powers on and appers to be in good working condition.
Options installed: 013/104/300/310/350/601.
* Option 013 = T-Carrier Test
* Option 104 = 2.5Gb/s, 622,155,52Mb/s 1310nm BER
* Option 300: ATM Testing up to 2.5 Gb/s
* Option 350 = Advanced Payload Engine
* Option 601 = LAN+RS232+HPIB Remote Control
The OmniBER 719 (37719A) communications performance analyzer offers a one box field portable multi-rate BER and jitter tester up to 2.5Gb/s (OC-48) for installation, maintenance, commissioning, system verification and manufacture of SONET/ATM transport networks and network equipment.
Not only is OmniBER 719 rugged and portable, its easy-to-use Smartsetup and Smart Tests simplify the installation and maintenance of SONET networks.
OmniBER 719 lets you start testing with just two key presses! With the tester connected to any signal, simply press the Smart Test key on the front panel, select Smartsetup and the autodiscover wizard identifies the line rate and payload structure of the input signal. For SONET signals, OmniBER 719 also automatically displays all of the J1 trace identifiers, that is 48 J1 identifiers in OC-48. Once the signal structure has been identified it's a simple process to select a channel of interest and to explore further into the payload.
OmniBER 719 provides concatenated payload testing at all levels of a SONET/ATM signal. Concatenated payloads are vital for the rapid testing of high bandwidth paths before they are brought into service. Concatenated payloads are also the recommended worse-case signal for performing jitter tests.
** ATM test capability to 2.5Gb/s
** Protection switching time measurement
** Concatenated payloads at all synchronous rates up to 2.5 Gb/s
** Comprehensive thru mode operation for SONET ring turn-up
** Full overhead access plus overhead sequence generation and capture
** Full pointer sequence generation to GR.253
** Jitter generation and measurement at all synchronous rates (52, 155, 622 and 2,488 Mb/s)
** Jitter testing to Bellcore GR-253, ITU-T G.825, G.958, O.171 and O.172
** Bi-color LEDs for signal status (signal, frame and pattern)
** VGA color display with single and multi-window operating modes
** Stored meaurement graphic results with 1 second resolution
** Full power fail recovery with no loss of results
** Remote control by GPIB, LAN and RS-232
