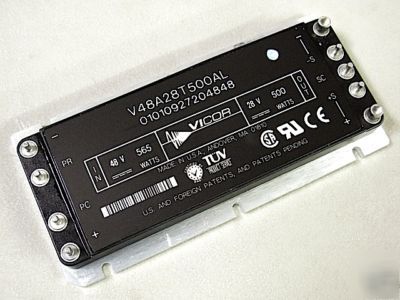

New 1 vicor(V48A28T500AL)48VDC in / 28VDC out.
Product Description 1 new VICOR DC 48V (565W) In, DC 28V (500W) Out Converter Module (V48A28T500AL) Size: 4.6 x 2.2 x 0.5 in (117 x 56 x 12,7 mm) Features RoHS Compliant (with F or G pin option) DC input range: 36 75 V Input surge withstand: 100 V for 100 ms DC output: 3.3 48 V Programmable output: 10 to 110% Regulation: 0.3% no load to full load Efficiency: Up to 89% Maximum operating temp: 100 C, full load Power density: up to 100 W per cubic inch Height above board: 0.43 in. (10,9 mm) Parallelable, with N+M fault tolerance Low noise ZCS/ZVS
