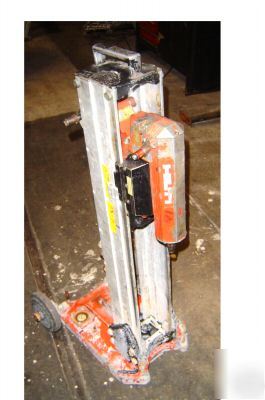

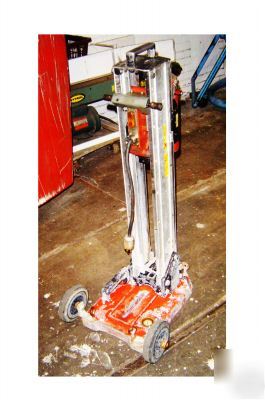

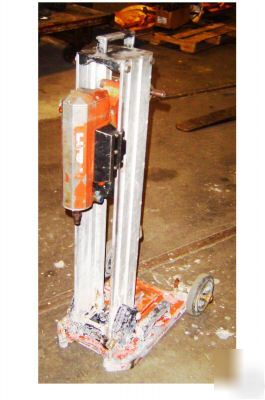

Hilti core drilling rig for diamond bits
HILTI CORE DRILLING RIG FOR DIAMOND BITS
This is a fast, economical solution for coring concrete, where embedded steel will be encountered.
The rig is designed to core "matched tolerence" holes for anchoe setting, as well as "through hole" drilling.
This unit has built in vacuum base.
DCM 1 CORING SYSTEM, ACCESSORIES AND CORE BITS
Fast, economical solution for coring concrete while embedded steel will be encountered.
Rig is designed to core " matched tolerance" holes for anchor setting as well as through hole drilling to 2".
With accessories, a wide variety of coring conditions can be achieved.
Matched tolerance DCI core bit- To provide optimum performance of Hilti anchor
Lightweight/ compact-Extremely portable (33 lbs without bit)
Quick release bit connection- Trouble free removal of bit and core
High speed/(rpm) motor-Optimum coring performance for anchor holes and small through holes
Electronic control unit maintains constant motor speed (rpm while providing current overload protection- Less risk of incoreect operation and premature failures.
Additional protection against motor and gear damage
Depth gauge/position indicator-Provides consistent hole depth and exact hole placement necessary for achoring
Two speed switch-Operator may select optimum coring speed for various bit diameters
Exhaust valve in grip-Release and reapply vaccuum bond in a matter of seconds
Water collector used in conjunction with water seal provided with each DCI bit- Restrains water flow and allows coring overhead
Left/right hand feed handle-For coring in tight places

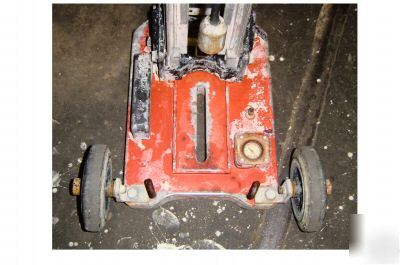

Combination vacuum pad/base plate-Securing options: Vacuum, anchor, or quick release brace assembly
Simplified drilled core removal-Time savings, protection of core bits
Play-free guidance-Motor is located directly between two column sections for maximum roller guidance
Smooth low vibration coring-Ensure clean holes even in material susceptible to impact)marble, tile, natural, and artificial stone)
Quickly selected- the correct speed.
Thanks to the two stage gears the correct speed can be quickly selected for every diameter, whether coring into concrete with or without rebar.
This ensures that the fastest coring rate is always provided, and the highest degree of protection for the core bit and the rig.
Graduated vacuum gauge enables bisual assurance of vacuum.
Color coding provides operator an easy and fast measure of vacuum level during any coring operation.
Gauge is sealed with shatter resistant cover providing durable, readable and water resistant protection
Speed Under Load: Low: 1800 rpm
Drill Diameter Range: 1/2" to 2"
Dimensions: Height: 28.3" (720 mm)
Bit Capacity: 1 5/8" with water collector
All you need is a pump, which can be purchased seperately from us.
