Fowler 54-520-777 electronic mark iv indicator

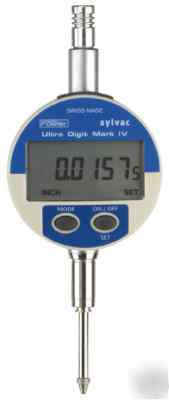

Ultra-Digit Mark IV Electronic Indicator
0 1"/25mm UD Mark IV; resolution .00005".
Completely reengineered measuring sensor. This non-contact linear measuring system is insensitive to dust, dirt, oils and electrical or magnetic interference.
Direct inch/metric conversion.
High contrast LCD display for fatigue-free viewing. LCD display has indicators for in/mm, hold, reference, preset zero functions.
Dual measuring references, each one individually presettable to 99.99999.
Low drain, high efficiency lithium wafer battery 4500 hrs. continuous on time. Extend battery life 2 3 years with on/off switch.
Repeatability .00008" (.002mm) 2S.
Standard measuring force 2 4 ounces.
Incremental floating zero. If tool is used for SPC, the zero button can automatically be configured as a data I/O switch.
Increased measuring, tracking speed of approximately 1.5 meters (60")/second impossible to overrun measuring speed.
Hold feature freezes display
Display face rotates 270 for easy viewing.
Non-contact measuring system no gears or pinions or moving parts.
Direct RS232C output allows connection of the tool to any computer or printer. No interface is necessary. For direct SPC output, hook up the tool with the specially constructed optocoupled cable. Free sample IBM compatible computer software included with cable for tolerancing, min/max/tir, analog display, large display and SPC data collection with Gage Wedge software.
AGD Group 2 dimensional specifications. (3/8" mounting, lug back, 4-48 thread).
Rugged housing constructed from high impact Polyamid, stainless steel shank and spindle.
Temperature range 5 40 C working; -20 to 60 C storage
