Ellis heavy duty dividing head w/ buck 4IN chuck

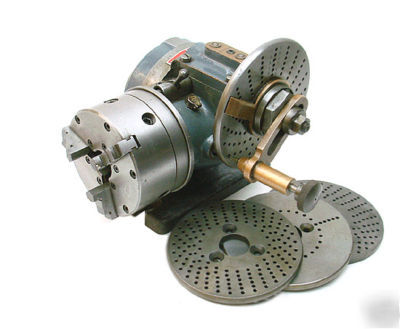

This is a Precision Heavy Duty Dividing Head with 4" Buck Chuck in good condition.

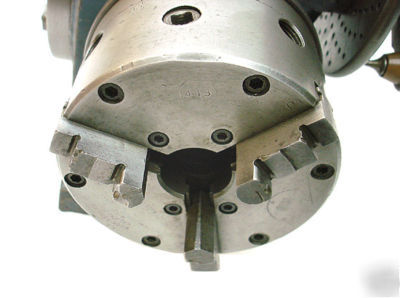

Buck 4" Diameter Three Jaw Chuck
* Designed to render accurate and efficient service and to satisfy all the requirements demanded by the average machine shop.
* Converts any ordinary milling machine or tool grinder into a universal machine
* With the dividing head, any double angle drilling or grinding operation will equal many rotary table jobs.
* Accurately cut bronze worm-wheel
* Embodies 40:1 ratio crank indexing dividing head.

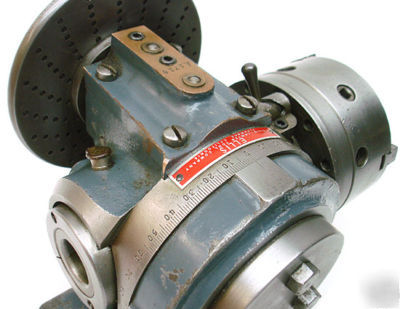

* Can easily adjust to any angle between -90 deg. to +90 deg. from a horizontal position.
Swing.............................................................6 1/2"
Hole through Spindle....................................15/16"
Spindle Nose Thread....................................1 3/4"-8
Crank Indexing Ratio.......................................40:1
Divisions........................................................Up to 400
Base to Chuck Center....................3 1/2"
Chuck Diameter..................................4"
Chuck Thickness...........................2 1/8"
Chuck center bore through hole................. 1 1/2"
Overall Dimensions: 10" x 10" x 8" tall.
