51 microcontroller training , experiment mcu+1602 lcd-b
We are an official registered company
and can give you the best service.
please View my other items on my store
The Shell of GGDL-3000 Experiment Board
emulation plug of 40 pins and 20 pins
serial communication cable USB Cable
1.There is a standard Atmel company ISP port, it will be a programmer when using a ISP download line plug in GGDL-3000 , It can program the AT89S51, AT89S52 and so on
2.the user system of 51 series MCU can be emulated via emulation plug of 40 pins or 20 pins plugging in the expanding port on the GGDL-3000 Board .
3.There is a RS232 port support serial port communication.
4.The power can be got from USB or from outside power source that is from 9-12 V , AC or DC. .
5. There is a good overload and short circuit protection function and the buzzer will alarm ,when a overload or short circuit . especially It is suit for the beginner who is easy to make errors .!!!

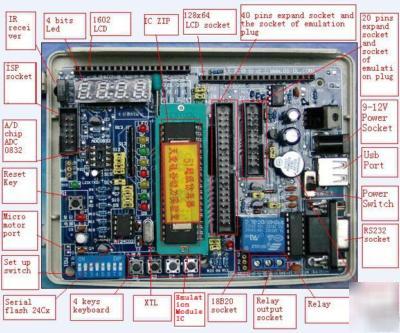

6. there are many hardware resources and port circuits : LED display nixie tube display 16*2 character liquid crystal display (LCD) port 128*64 liquid crystal display port LCD 4 keys small keyboard A/D ,ADC 0832 port serial port communication serial flash 24c series buzzer relay temperature sensor 18B20 port DC micro motor control Infrared remote control power circuit all kinds of function module can be expanded by yourself , like step-advance motor control module .
7.Good expansibility , all the MCU ports, P0,P1,P2,P3 can be expanded by yourself , and can be composed all kinds of application system , It is very important .
8. There are 40 pins and 20 pins expanding port. The pin's name and position is the same with 89c51 and 89c2051
9. to use split-up and vertical insert elements ,easy to distinguish ; and to use the IC seat , easy to change .
10. Providing the sample programs , making the beginning students to study the software and hardware design of MCU as soon as possible.
You can do the experiments with GGDL-3000
1. Led display experiment repeating
2. nixie tube display experiments such as counter ,
3. stopwatch ,electronic clock ,and so on.
4. 24C** programming experiment
7. the keyboard control experiment
9. 16*2 character liquid crystal display (LCD) experiment
10. to use temperature sensor 18B20 to do test temperature experiment
11. the small DC motor control experiment
12. serial port communication experiment .
13. to use ADC 0832 to do A/D transforming experiment
14. to use 128*64 liquid crystal display ( LCD ) to display the picture experiment
15. You can do the experiments you want to do via the expand port J1.J2 .
The system package include ( default layout ):
1. one piece GGDL-3000 Experiment Board host ;
2. one piece IR remote-control-unit
3. 2 in 1 Atmel 51 programmer ( to use USB-Transform To-RS232 communication cable , can work with notebook PC )
supported chips: AT89C1051 1K AT89C2051 2K AT89C4051 4K)
AT89C51 4K AT89C52 8K AT89C55 20K AT89S51 4K AT89S52 8K), and so on
4. one piece emulation moudle ( emulation monitor ),
you can use the Keil C software , it will be as an emulator ;
5. one emulation plug ( cable ) of 40 pins and 20 pins
7. One piece serial communication cable
8. one piece 89S52,that has been programmed by test program ;
9. CD-ROM for 2 in 1 Atmel 51 programmer software, Experiment sample
2. a beautiful shell for GGDL-3000 Experiment Board
4. One piece USB-Transform To-RS232 communication cable , using this cable ,
the GGdl-3000 can be used on Notebook PC
5 DS18B20 temperature sensor-3$, as gift now ,
. A/D chip ADC 0832 -3$, as gift now .
To be able to be selected parts ( you have to pay additionally, if you want)
:1. GGDL-3000 can work on Windows 98, Windows 2000/NT, Windows XP
2. This Item can be used on Notebook PC that only have USB
ports ,not have parallel port and serial port.
this item and tell me what parts do you want ,then I
will send a invoice include the parts to you.
Canada, West Eu, UK, Ger,France, East Asia, Australia and Newzealand , USA
Normally to USA, Canada ,Australia, West and North Europe about 15 Business Days .after sending
To East EU, Russia , South America , South Asia , West Asia,Africa and so on , To other Countries
* Returns accepted within: 10 Days
We will response you : within 8 hours
