36" x 48" american heavy-duty engine lathe #25574

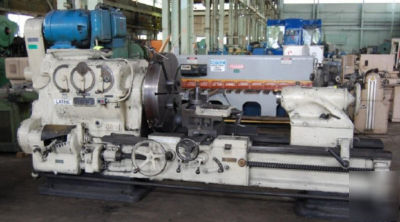

36" X 48" AMERICAN HEAVY-DUTY ENGINE LATHE
Serial No. 65460-42, Model 36"
Hole Thru Spindle...................... 2.625"
Swing Over Bed Ways, Rated............. 36"
Swing Over Bed Ways, Actual............ 37.5"
Swing Over Cross-Slide................. 28.625"
Distance Between Centers............... 48"
Tailstock, Quill Diameter.............. 5.5"
(12) Spindle Speeds, Range............. 9 to 400 RPM
(48) Carriage Longitudinal Feeds....... .004 to .240 IPR
(48) Thread Changes, Range............. 1/2 to 28 TPI
Motor Horsepower....................... 30 HP
Floor Space Required, L x W............ 10' x 6'
Weight, Approximately.................. 12500 LBS
Taken From Maintenance Department. Spindle Speeds
Are Factory Rated Up To 800 RPM.
PRICE: F.O.B. OUR WAREHOUSE........... $17,500.00
