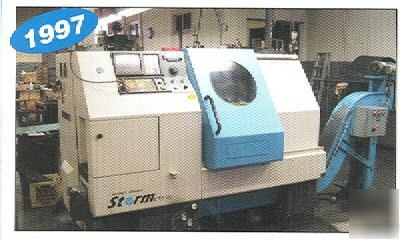

Clausing/colchester storm 80 2AXES cnc turning center
CLAUSING/COLCHESTER STORM 80 2Axes CNC Slant Bed Turning Center, S/N T70065,
Swing over carriage cover 11.02
Carriage inclination 60 (slant)
Spindle center height from floor 34.45
Spindle front bearing internal diameter 3.15
X and Z axis rapid traverse rate 394/591 IPM
Turret tool disc diameter 13.39
Turning tool shank dimensions .787 x .787
Max. boring bar diameter 1.26
Max. travel below center line .866
Width over linear guide ways 7.36
(26) Turret tool holders with misc. tooling
GE Fanuc 21-TB Control with RS232 port
3/60/230 Volt electrics with transformers for 3/60/208 Volt input
