9†x 35†jet vertical milling machine; power feeds

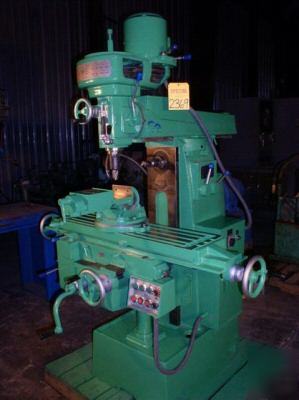

(1) Used 9 X 35 JET Vertical Milling Machine; Model#: HMV-1PFB; Serial#: 53977
Table Size 9" x 35" T-Slotted
Longitudinal . 11" F-B nominal
Head Rotation.............................................. 45
Head Travel................................................. 18" nominal
Spindle Travel.............................................. 3 "
Cross Travel . 22 " L-R nominal
Vertical Travel .. 16 " nominal
Feeds .. .. Power
Feed Speeds(6)............................................. 13/16 9 3/8 I.P.M.
Power Rapid Traverse .. 80 I.P.M.
Spindle Size .. 30 I.S.C.
Speeds(6) .. 80-900 R.P.M.
Chuck Size................................................... 4 " x 5 "
Electrical Characteristics . 230/460 V.A.C.
Horizontal Auxiliary Spindle Head
Overall Dimensions: ....56" L-R x 40" F-B x 77" High (est.)
Weight: .....4,800 lbs. (est.)
