26.5" h-duty clamshell clam shell bucket w/hyd rotator

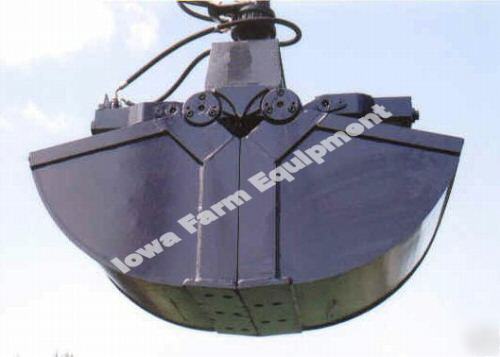

Brand New V350 Heavy Duty Clamshell Bucket with R45 Hydraulic Rotator Head.
* This Clamshell Bucket & Rotator Head are available as a unit (as shown in photo) for installation on your own Structure.
* Hydraulic Cylinder for operating the Clamshell Bucket is included, and comes with Equalizer Linkage which distributes the load equally when the bucket is closing.
* Pressure Reduction Valve is Standard.
* Approx. Bucket Dimensions are 25.6" Tall X 55" Wide (end to end) X 25.6" Deep (sidewall to sidewall).
* Height in the open position is 26-3/8".
* Volumn is 93 Gallons / 350 Liters!
* Gripping Force is 7870 ft lb's of force!
* Rotator Head is CONTINUOUS in Both Directions!!!
* Max Working Pressure is 3000psi.
* Torque Rating is 737ft lb @ 2320psi.
* Pin Hole for attaching to Grapple Hanger is 1" Diameter.
